Integrated Oxidation Air Blower For Aquaculture Power Plant Air Blower

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

Oxidation Blower For Power Industry

Place Of Origin:

China

Certification:

CE, ISO9001, ISO14001

Pressure:

40-400KPa

Factory Production Capacity:

3,000 Units/Month

Production Time:

Shipment Within 7 Days After Payment Receipt

Applications:

Aquaculture Power Industry

Payment Methods:

T/T, L/C

Packaging Details:

Packed in Wooden Cases

Highlight:

Integrated Oxidation Air Blower

Aquaculture Oxidation Air Blower

Aquaculture Power Plant Air Blower

Product Description

Whole Integration Oxidation Blower for Aquaculture Power Industry

Product Introduction

This product’s cross-section shows its key components. The stator and rotor form the core assembly, with an air bearing enabling frictionless rotation. Axial forces are managed by a thrust bearing, while the impeller attached to the rotor cooperates with the volute to guide flow. The design focused on efficiency utilizes air bearings to lessen wear.

Integrated Oxidation Air Blower For Aquaculture Power Plant Air Blower 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

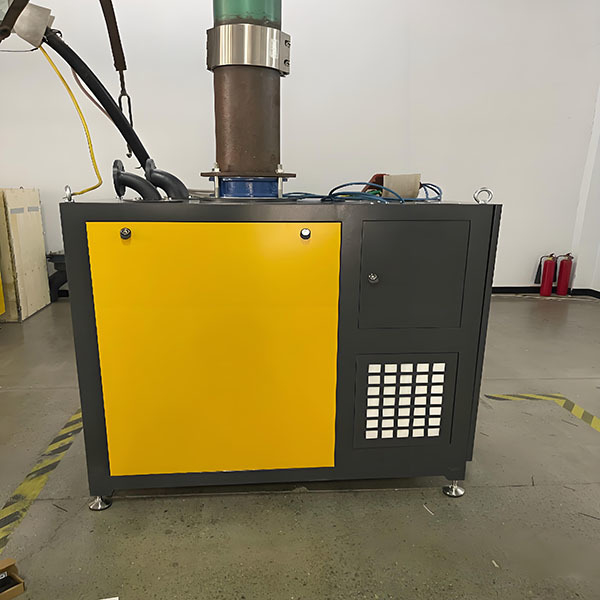

Product Show

Application Cases

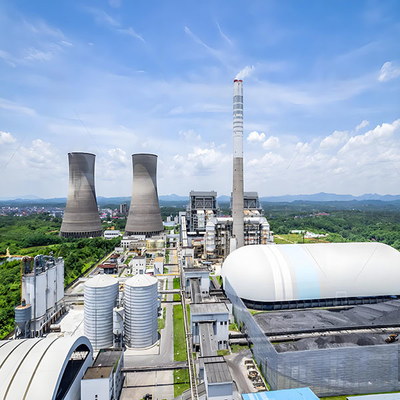

Power Industry

For the energy efficiency retrofit project of the desulfurization oxidation blowers at a customer's 2×330MW generating units, the proposed solution involves upgrading to air suspension centrifugal blowers. This upgrade aims to achieve stable operation, long-term economic benefits, and significant energy savings.

Energy-Saving Solution

With prolonged operation of the original Roots blowers, equipment aging and frequent maintenance have severely impacted system stability. The customer requires intelligent equipment that ensures reliable operation and high energy efficiency.

Supplier	Customer Factory	Frezer Technology
Blower Selection	Roots Blower	(ST150-08)
Number of Blower	Eight Units	Eight Units
Single Unit Airflow Capacity	67.1M³/MIN	84M3/MIN
Single Motor Rated Power	185KW	110KW
Total Operating Power	1480KW	880KW
Pressure	84KPA	85KPA
System Power Savings	1480KW-880KW=600KW
Annual Power Reduction	600KW×24H×365D=5,256,000KW.H
Energy Cost Savings	5,256,000KW.H×0.05CNY/KW.H=2,628,000CNY
% Power Reduction	600/1480=40.54%
Roots Blower Maintenance Cost	3000CNY/Year/Unit
Air Suspension Blower Maintenance Cost	1000CNY/Year/Unit
Annual CO₂ Emission Reduction	5,256,000KW.H×0.997KG÷1000=5240.23T
Annual Standard Coal Equivalent Saved	5,256,000KW.H×0.35KG÷1000=1839.6T

Retrofit Advantages

Low Retrofit Cost – Highly integrated design allows direct deployment using existing infrastructure, eliminating the need for new foundations
Improved Working Environment – Noise levels reduced to below 80 dB, creating a cleaner and more comfortable workspace
Cost-Saving Benefits – Maintenance-free operation reduces spare parts inventory, delivering hidden cost savings
Extended Service Life – Semi-permanent design with over 20 years of operational lifespan
High Efficiency & Smart Features – Motor efficiency exceeds 96% with no performance degradation over its lifecycle. Features include multi-mode operation, IOT connectivity, remote control, multi-layer safety alerts, and secure, efficient performance

Our Service

Professional Team
Reliable Technology
24 Hours Service

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
