products details

Home Products

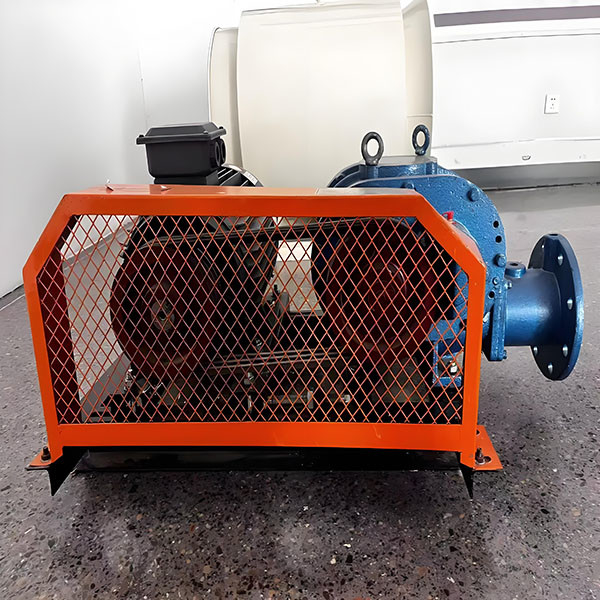

Consolidated Oxidation Roots Blower Used in Food Processing Plant Paper Mill

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

Consolidated Oxidation Blower

Place Of Origin:

China

MOQ:

1 Set

Production Time:

Shipment Within 7 Days After Payment Receipt

Factory Production Capacity:

3,000 Units/Month

Pressure:

1Pa-1.013 25×100000Pa

Applications:

Paper Mill

Delivery Methods:

By Air, Sea, Land, Express

Packaging Details:

Packed in wooden cases

Highlight:

Consolidated Oxidation Roots Blower

Plant Oxidation Roots Blower

Paper Mill Oxidation Roots Blower

Product Description

Consolidated Oxidation Blower Used in Food Processing Plant Paper Mill

Product Introduction

Technical specifications such as model number, bore size, rotational speed (r.p.m.), discharge pressure, airflow capacity, and power consumption are listed in the performance tables for each blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm²(101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

Standard air capacity can be derived from discharge air capacity using the conversion formula below.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Performance tables contain technical specifications like model number, bore, operating speed, discharge pressure, air capacity, and power consumption for each blower.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Pressure	Pa	Bar	Kgf/cm2	atm	mmH2O	MmHg(Torr)
	1 1×10⁵ 9.806 65×10⁴ 1.013 25×10⁵ 9.806 65 1.333 22×10²	1×10⁵ 1 9.806 6525×10^-1 1.013 25 9.806 6525×10^-5 1.333 2225×10^-3	1.019 72×10^-5 1.019 72 1 1.033 23 1×10^-4 1.359 51×10^-3	9.869 23×10-6 9.869 23×10-1 9.678 41×10-1 1 9.678 41×10-5 1.315 79×10-3	1.019 72×10^-1 1.019 72×10⁴ 1×10⁴ 1.033 23×10⁴ 1 1.359 51×10	7.500 62×10^-5 7.500 62×10² 7.355 59×10² 7.600 00×10² 7.355 59×10^-2 1

Product Specification

Mark Type	Bore	A	B	C	D	E	F	G	H	J
SR-50	50A	570	179	135	895	152	230	540	420	60
SR-65	65A	610	202	145	970	192	230	600	440	80
SR-80	80A	700	225	165	1130	217	280	650	500	75
SR-100	100A	900	265	175	1255	234	280	850	630	110
SR-125	125A	945	294	205	1525	260	355	920	710	105
SR-150	150A	1155	377	225	1745	305	400	1150	950	100
SR-175	200A	1300	457	245	1765	305	520	1330	1030	150
SR-200	200A	1570	550	276	2230	405	591	1600	1300	150
SR-250	250A	1847	596	445	2790	520	760	2200	1800	2300
SR-300	300A	2167	683	470	2805	520	750	2500	2040	230

Mark Type	Bore	K	L	M	N	O	P	Q	R	n-Φ1	Weight
SR-50	50A	―	―	260	220	122	20	80	60	4-Φ14	72
SR-65	65A	―	―	300	260	122	20	80	80	4-Φ14	84
SR-80	80A	―	―	370	330	147	20	80	75	4-Φ19	132
SR-100	100A	―	―	400	360	114	20	80	110	4-Φ19	168
SR-125	125A	355	355	430	390	175	20	100	105	6-Φ19	245
SR-150	150A	475	475	500	455	190	22.5	100	165	6-Φ19	408
SR-175	200A	515	515	500	455	310	22.5	100	240	6-Φ19	505
SR-200	200A	650	650	650	605	348	22.5	126	240	6-Φ19	900
SR-250	250A	900	900	950	870	250	40	140	250	6-Φ24	1653
SR-300	300A	1020	1020	950	870	240	40	140	270	6-Φ24	2132

Product Show

Our Service

Excellence is the hallmark of our service, propelled by a professional team of experienced specialists who integrate industry insight with innovative approaches. Every team member undergoes strict training to remain at the cutting edge of emerging trends, allowing us to deliver solutions that are both state-of-the-art and customized to your unique requirements. Supplementing our human expertise is reliable technology, the cornerstone of our operations—from advanced software systems to high-grade equipment, we harness technology to enhance efficiency, precision, and dependability in every endeavor.
What truly sets us apart is our unwavering commitment to 24-hour service. We understand that challenges don’t adhere to a standard work schedule, which is why our support team remains vigilant around the clock, ready to address crises, resolve queries, or provide assistance whenever necessary. Whether you need urgent technical support, last-minute project adjustments, or the peace of mind that help is always available, our round-the-clock availability ensures you never lack support. By combining professional competence, robust technology, and steadfast dedication, we redefine service not just as reliability but as a transformative experience.

Product Features

Wastewater Treatment Plant
Cement Plant
Steel Mill
Chemical Powder Handling Plant
Flue Gas Desulfurization Plant
Electroplating Plant
Sandblasting Facility
Electronics Manufacturing Plant
Food Processing Plant
Pharmaceutical Manufacturing Plant
Paper Mill
Textile Mill
Dyeing and Printing Plant

Delivery

We can delivery the products by any methods as your wish.
