All In One Oxidation Blower 40KPa - 400KPa For New Building Materials Industry

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

Complete Oxidation Blower

Place Of Origin:

China

Certification:

CE, ISO9001, ISO14001

Delivery Methods:

By Air, Sea, Land, Express

Factory Production Capacity:

3,000 Units/Month

Pressure:

40KPa-400KPa

MOQ:

1 Set

Payment Methods:

T/T, L/C

Packaging Details:

Packed in Wooden Cases

Highlight:

Oxidation Blower 40KPa

Oxidation Blower 400KPa

Product Description

Complete All in One Oxidation Blower for New Building Materials Industry

Product Introduction

The cross-section of this product reveals its key components. The stator and rotor make up the core assembly, with an air bearing guaranteeing frictionless rotation. A thrust bearing handles axial forces, while the impeller linked to the rotor works with the volute to direct flow. The design prioritizing efficiency uses air bearings to reduce wear.

All In One Oxidation Blower 40KPa - 400KPa For New Building Materials Industry 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

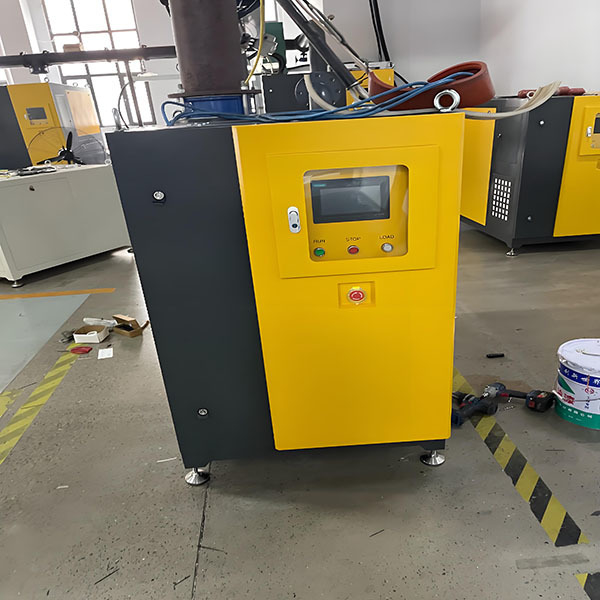

Product Show

Application Cases

Aquaculture

Stable and Reliable
The centrifugal impeller delivers continuous and stable air output, maintaining consistent pressure during prolonged operation. Supports frequent starts and stops, with a wide operating range.

Mobile APP Remote Control
Equipped with PLC and remote data monitoring, enabling remote debugging and adjustment of equipment operation.

Easy Disassembly
Highly integrated design for simple installation. No mechanical maintenance required during normal operation.

40% Energy Saving
Permanent magnet synchronous high-speed motor + high-efficiency ternary flow impeller, saving 40% energy compared to traditional blowers.

Oil-Free and Low Noise
Low-vibration design with noise levels ≤80 dB. Oil-free air compression ensures clean, contaminant-free air output.

Transaction Process

Get requirements to match products
Compare with the Roots blower
Quotation
Receive payment
Production
Packing in wooden cases
Delivery
Feedback

Our Service

Professional Team
Reliable Technology
24 Hours Service
