Oxidation Blower
Created with Pixso.

40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower

40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower

Brand Name: Frezer
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3,000 Units/Month
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001, ISO14001
Product Name:
Oxidation Blower For Power Industry
Place Of Origin:
China
Certification:
CE, ISO9001, ISO14001
Delivery Methods:
By Air, Sea, Land, Express
Factory Production Capacity:
3,000 Units/Month
Pressure:
40KPa-400KPa
Applications:
Power Industry
Payment Methods:
T/T, L/C
Packaging Details:
Packed in Wooden Cases
Highlight:

40KPa Oxidation Blower

,

400KPa Oxidation Blower

,

Oxidation High Air Flow Blower

Product Description

High Air Flow High Technology Oxidation Blower for Power Industry



Product Introduction



Key components are displayed in this product’s cross-section. The core assembly consists of the stator and rotor, with an air bearing ensuring rotation without friction. A thrust bearing controls axial forces, and the rotor-connected impeller collaborates with the volute to channel flow. The efficiency-driven design employs air bearings to minimize wear.


40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower 0



Product Specification



Details ST10 ST20 ST30 ST50 ST75 ST100 ST125 ST150 ST200 ST250 ST300 ST350 ST400 ST500 ST600 Cooling Method
Type SINGLE GRADE   DOUBLE GRADE
Discharge Pressure(KPA) Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance Air Cooling
40 10 18
60 7.5 15 20 34 51 69 82 105 140 175 210   280 345 420
70   13 18 30 45 60 74 90 120 150 180   240 300 360
80   12 17 28 42 54 70 84 109 135 164   218 270 328
90         37 50 61 71 92   140   184
100         34 45 55 67 87   133     230 260
150           32 48 60 69 81 121 125
200               56 65 71   85       Water Cooling
300                     105 79
350           20     37     72
400                 25     65
Motor Power(KW) 7.5 15 22 37 55 75 90 110 150 185 220 250 300 375 450
Discharge Pipe(KW) 80 100 150 150 200 200 200 200 200 200 200 200 200 200 200
Size(MM) Width 800 800 800 800 1000 1000 1000 1000 1000 1000 1200 1300 1300 1300 1300
Length 1250 1250 1250 1250 1620 1620 1620 1620 1620 1620 2200 2700 2700 2700 2700
Height 970 970 970 970 1525 1525 1525 1525 1525 1525 1916 2115 2115 2115 2115
Weight 680 680 680 750 800 960 960 1050 1050 1100 1320 1580 1580 1800 1800

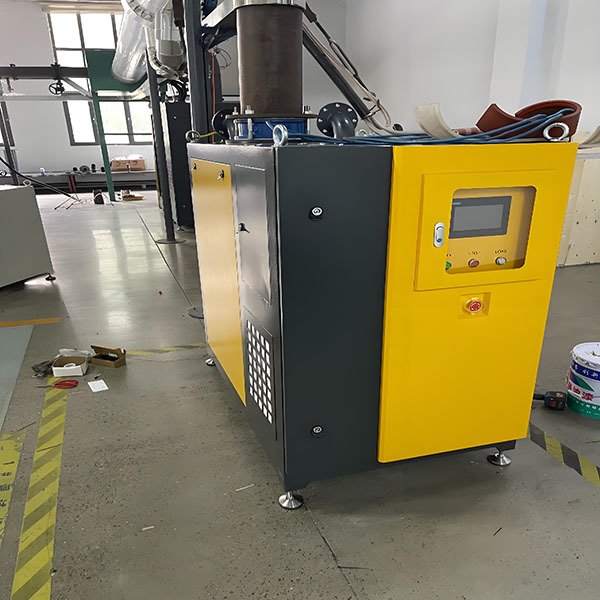

Product Show



40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower 1

40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower 2



Manufacturer Introduction



Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.

Equipped with advanced facilities, strong technical expertise, optimized production processes, and comprehensive testing methods, our products boast unique advantages such as innovative design, robust structure, high energy efficiency, low noise, user-friendly operation, and easy maintenance—features that set them apart from conventional alternatives.

Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.



40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower 340KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower 4



Our History



Our company was founded in 2007, in the next 3 years we had gone to Korea to learn the high technology to develop our products. In 2013, our products have been widely used in Chinese market to save cost, increase efficiency, and decrease noise. To match the market all over the world, we have developed the high pressure products which are more than 4000KPA with more than 30 patent technologies from 2020. Nowadays, according to products updates in quality and convenience, our products are increasingly accepted by more and more customers.



Delivery



40KPa - 400KPa Oxidation Blower For Power Industry High Air Flow Blower 5



We can delivery the products by any methods as your wish.



Our Service



  • Professional Team
  • Reliable Technology
  • 24 Hours Service



Payment Methods



T/T,L/C,West Union,Alibaba Trade Insurance,AliPay.
