High Technology Roots Blower For Wastewater Treatment Plant Paper Mill Factory

High Technology Roots Blower for Wastewater Treatment Plant Paper Mill

Product Introduction

The performance tables give model number,bore, r.p.m, discharge pressure, air capacity and required power of the blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Using the air capacity and discharge pressure computed previously, one can find the model, bore, rotational speed (r.p.m.), and required power in the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

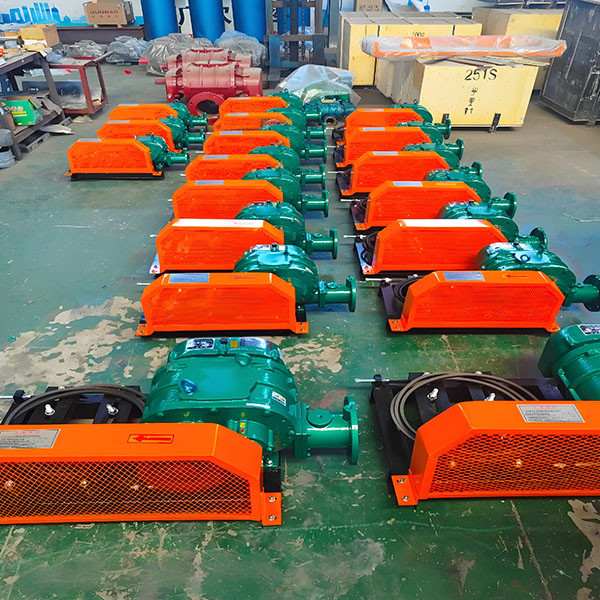

Product Show

Transaction Process

The process initiates with product-demand alignment, where enterprises thoroughly analyze clients' specific requirements to provide tailored solutions – a cornerstone for fostering robust customer relationships.

Subsequently, the quotation phase begins. Companies generate transparent pricing proposals based on production costs and market trends, ensuring clients fully comprehend transaction expenses. Upon acceptance of the offer, the payment collection process is triggered, which is the essential prerequisite for manufacturing commencement.

Post-payment confirmation, production commences in strict compliance with quality standards and client specifications. Completed goods are then securely packed in wooden crates, a measure that safeguards products during transit while streamlining handling and storage procedures.

The final stages encompass logistics delivery and performance review. Enterprises dispatch products via reliable channels, followed by proactive collection of user feedback to assess satisfaction levels. This enables continuous refinement of transactional procedures and product enhancement. Through this methodical framework, both businesses and clients achieve mutually beneficial outcomes and shared commercial success.

Applications

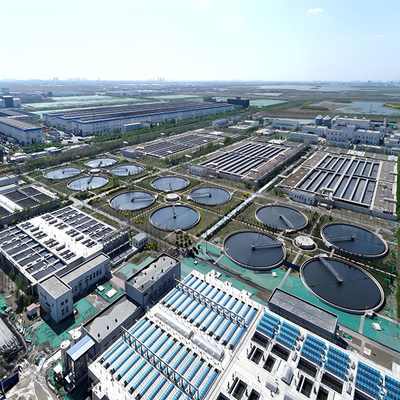

• Wastewater Treatment Plant
• Cement Plant
• Steel Mill
• Chemical Powder Handling Plant
• Flue Gas Desulfurization Plant
• Electroplating Plant
• Sandblasting Facility
• Electronics Manufacturing Plant
• Food Processing Plant
• Pharmaceutical Manufacturing Plant
• Paper Mill
• Textile Mill
• Dyeing and Printing Plant

Delivery

We can delivery the products by any methods as your wish.
