Industrial Roots Positive Displacement Blower For Power Industry Steel Mill Cement Plant

Assembly Roots Blower Used in Power Industry Manufacture Factory

Product Introduction

Performance tables present the blower's model number, bore diameter, rotational speed (r.p.m.), discharge pressure, air capacity, and power requirement.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Based on the calculated air capacity and discharge pressure, you can determine the blower’s model, bore, r.p.m., and power requirement from the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

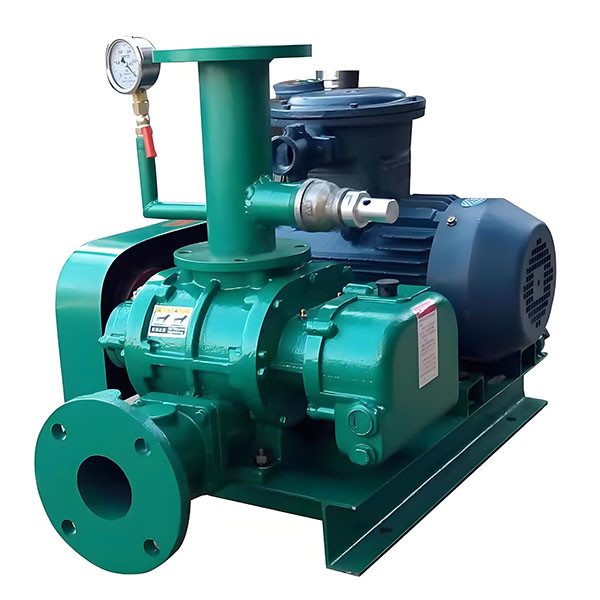

Product Show

Our History

Our company was founded in 2007, in the next 3 years we had gone to Korea to learn the high technology to develop our products. In 2013, our products have been widely used in Chinese market to save cost, increase efficiency, and decrease noise. To match the market all over the world, we have developed the high pressure products which are more than 4000KPA with more than 30 patent technologies from 2020. Nowadays, according to products updates in quality and convenience, our products are increasingly accepted by more and more customers.

Applications

• Wastewater Treatment Plant
• Cement Plant
• Steel Mill
• Chemical Powder Handling Plant
• Flue Gas Desulfurization Plant
• Electroplating Plant
• Sandblasting Facility
• Electronics Manufacturing Plant
• Food Processing Plant
• Pharmaceutical Manufacturing Plant
• Paper Mill
• Textile Mill
• Dyeing and Printing Plant
