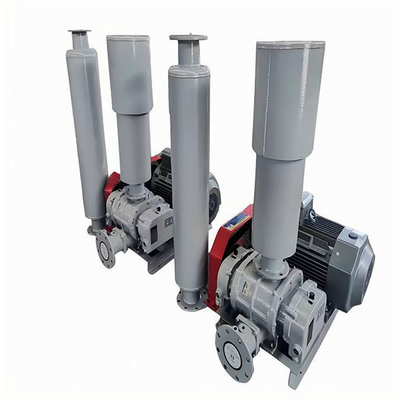

High Pressure All In One Roots Style Blower For Sewage Industry Cement Industry

High Pressure All in One Roots Blower for Sewage Industry Cement Industry

Product Introduction

The performance tables give model number,bore, r.p.m, discharge pressure, air capacity and required power of the blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Based on the air capacity and discharge pressure calculated as above, the performance table lists the model, bore, r.p.m., and required power.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay

Transaction Process

The transaction process commences commences by collecting client specifications to identify compatible products.  This preliminary phase requires in-depth discussions to grasp exact demands, preferences, and technical parameters.  Precise needs assessment guarantees that recommended offerings fully correspond to the client’s expectations.

Following requirement validation, an official proposal is issued.  This document outlines product specifications, cost breakdowns, shipping arrangements, and payment policies.  Clear and upfront pricing fosters confidence and enables customers to make well-considered choices.

Upon quotation acceptance, the subsequent action involves payment processing.  Transaction options may include wire transfers or digital payment platforms.  A reliable and streamlined payment mechanism guarantees hassle-free financial operations.

Post-payment verification, manufacturing initiates.  Rigorous quality assurance protocols are enforced throughout production to comply with regulatory benchmarks and client-defined criteria.  Adherence to scheduled timelines is vital to prevent setbacks.

Post-production, items are securely encased in durable wooden crates for transportation, minimizing the risk of handling damage.  Meticulous packaging demonstrates corporate diligence and safeguards product integrity.

The concluding steps encompass logistics fulfillment and post-delivery evaluation.  Soliciting client input allows for performance appraisal and pinpointing enhancement opportunities.  This cyclical methodology strengthens enduring commercial partnerships.

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
