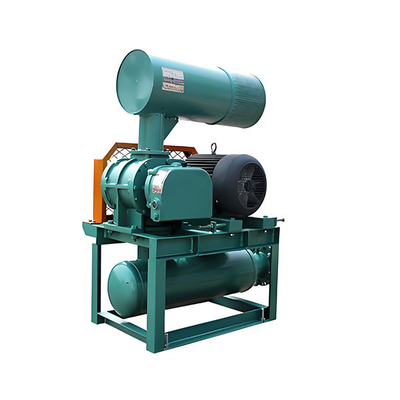

Integration Consolidated Roots Type Blower For Paper Mill Textile Mill

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

Roots Blower For Paper Mill

Place Of Origin:

China

Certificate:

CE, ISO14001, ISO9001

Pressure:

1Pa-1.013 25×100000Pa

Applications:

Cement Plant

Production Time:

Shipment Within 7 Days After Payment Receipt

Bore:

50A-300A

Package:

Wooden Case

Packaging Details:

Packed in wooden cases

Highlight:

Integration Roots Type Blower

Consolidated Roots Type Blower

Textile Mill Roots Type Blower

Product Description

Integration Consolidated Roots Blower for Paper Mill Textile Mill

Product Introduction

The performance tables give model number,bore, r.p.m, discharge pressure, air capacity and required power of the blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm²(101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

According to the air capacity and discharge pres.sure as calculated above,the model, bore, r.p.m. and required power can be found in the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Pressure	Pa	Bar	Kgf/cm2	atm	mmH2O	MmHg(Torr)
	1 1×10⁵ 9.806 65×10⁴ 1.013 25×10⁵ 9.806 65 1.333 22×10²	1×10⁵ 1 9.806 6525×10^-1 1.013 25 9.806 6525×10^-5 1.333 2225×10^-3	1.019 72×10^-5 1.019 72 1 1.033 23 1×10^-4 1.359 51×10^-3	9.869 23×10-6 9.869 23×10-1 9.678 41×10-1 1 9.678 41×10-5 1.315 79×10-3	1.019 72×10^-1 1.019 72×10⁴ 1×10⁴ 1.033 23×10⁴ 1 1.359 51×10	7.500 62×10^-5 7.500 62×10² 7.355 59×10² 7.600 00×10² 7.355 59×10^-2 1

Product Specification

Mark Type	Bore	A	B	C	D	E	F	G	H	J
SR-50	50A	570	179	135	895	152	230	540	420	60
SR-65	65A	610	202	145	970	192	230	600	440	80
SR-80	80A	700	225	165	1130	217	280	650	500	75
SR-100	100A	900	265	175	1255	234	280	850	630	110
SR-125	125A	945	294	205	1525	260	355	920	710	105
SR-150	150A	1155	377	225	1745	305	400	1150	950	100
SR-175	200A	1300	457	245	1765	305	520	1330	1030	150
SR-200	200A	1570	550	276	2230	405	591	1600	1300	150
SR-250	250A	1847	596	445	2790	520	760	2200	1800	2300
SR-300	300A	2167	683	470	2805	520	750	2500	2040	230

Mark Type	Bore	K	L	M	N	O	P	Q	R	n-Φ1	Weight
SR-50	50A	―	―	260	220	122	20	80	60	4-Φ14	72
SR-65	65A	―	―	300	260	122	20	80	80	4-Φ14	84
SR-80	80A	―	―	370	330	147	20	80	75	4-Φ19	132
SR-100	100A	―	―	400	360	114	20	80	110	4-Φ19	168
SR-125	125A	355	355	430	390	175	20	100	105	6-Φ19	245
SR-150	150A	475	475	500	455	190	22.5	100	165	6-Φ19	408
SR-175	200A	515	515	500	455	310	22.5	100	240	6-Φ19	505
SR-200	200A	650	650	650	605	348	22.5	126	240	6-Φ19	900
SR-250	250A	900	900	950	870	250	40	140	250	6-Φ24	1653
SR-300	300A	1020	1020	950	870	240	40	140	270	6-Φ24	2132

Product Show

Our Service

Our Service exemplifies excellence, propelled by a Professional Team of experienced specialists who integrate industry insight with innovative approaches. Every team member undergoes strict training to ensure they remain at the vanguard of evolving trends, allowing us to deliver solutions that are both cutting-edge and customized to your specific requirements. Supplementing our human expertise is Reliable Technology, the cornerstone of our operations—from sophisticated software systems to top-tier equipment, we harness technology to enhance efficiency, precision, and dependability in every undertaking.

What truly distinguishes us is our unswerving dedication to 24 Hours Service. We recognize that challenges don’t conform to a typical workday, which is why our support team stays alert around the clock, prepared to address crises, resolve inquiries, or offer assistance whenever needed. Whether you require urgent technical support, last-minute project modifications, or the reassurance of knowing help is always accessible, our round-the-clock availability ensures you’re never left unsupported. By combining professional proficiency, robust technology, and unwavering commitment, we reimagine service as more than reliability—it’s a transformative experience.

Delivery

Why Choose Worldwide Express for Your Deliveries?

At Worldwide Express, we partner with leading logistics providers like to ensure your shipments are delivered fast, secure, and reliable. Whether you need air freight, ground shipping, or expedited services, we offer flexible solutions tailored to your needs.

Our EHS standards guarantee that your products are handled responsibly, minimizing risks and environmental impact. With global coverage and real-time tracking, you can trust us for seamless logistics—anywhere, anytime.

Your Delivery, Your Way!

Fast & Reliable – ensures timely delivery
Global Network – Ship to over 220+ countries
Safety Compliance – EHS-certified handling
Custom Solutions – Choose air, sea, or land transport

Transaction Process

Get requirements to match products
Quotation
Receive payment
Production
Packed in wooden cases
Delivery
Feedback

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
