Holistic Roots Blower For Chemical Powder Handling Plant Manufacture

Holistic Roots Blower for Chemical Powder Handling Plant Manufacture

Product Introduction

The performance tables give model number,bore, r.p.m, discharge pressure, air capacity and required power of the blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

According to the air capacity and discharge pres.sure as calculated above,the model, bore, r.p.m. and required power can be found in the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

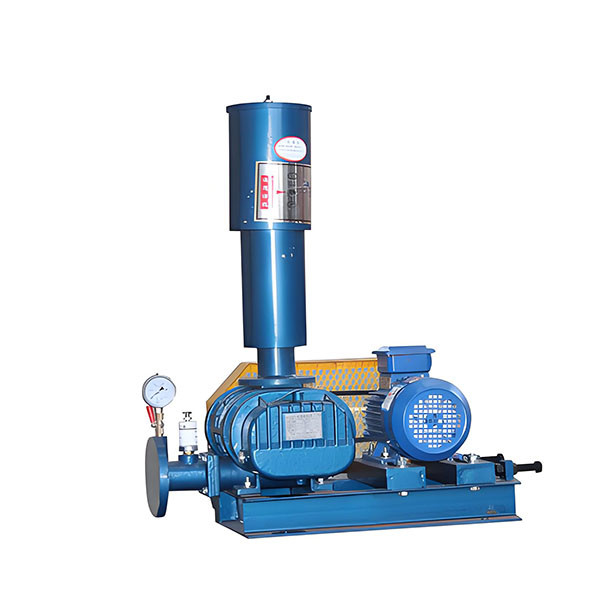

Product Show

Transaction Process

The transaction process is a crucial part of ensuring the smooth operation of business activities, encompassing a series of steps from requirement acquisition to final feedback. First and foremost, getting requirements to match products serves as the starting point of the entire process. Enterprises need to have an in-depth understanding of customers' specific needs and expectations. After accurate analysis, they match the most suitable products for customers, which is the foundation for building good customer relationships.​

The next step is the quotation process. Enterprises provide customers with clear and accurate quotation sheets based on factors such as product costs and market conditions, enabling customers to have a clear understanding of the transaction costs. When customers accept the quotation, the payment collection stage begins. Only when the payment is received can subsequent production proceed smoothly.​

After receiving the payment, the production process commences. Enterprises meticulously organize production in accordance with established standards and customer requirements to ensure product quality. Once production is completed, the products will be packed in wooden cases. This not only protects the products from damage during transportation but also facilitates handling and storage.​

Finally, there are the delivery and feedback stages. Enterprises deliver products to customers through reliable logistics. Subsequently, they actively collect customer feedback to understand customers' satisfaction with products and services, so as to continuously optimize the transaction process and improve product quality. Through such a rigorous and orderly transaction process, both enterprises and customers can achieve their respective business goals and reach a win-win situation.

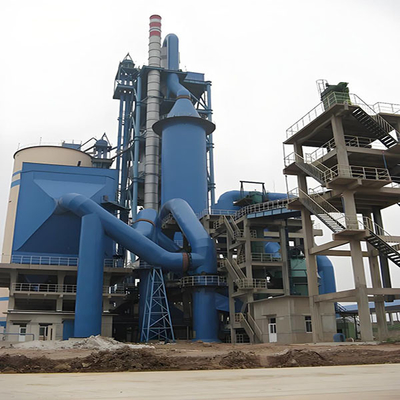

Applications

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
