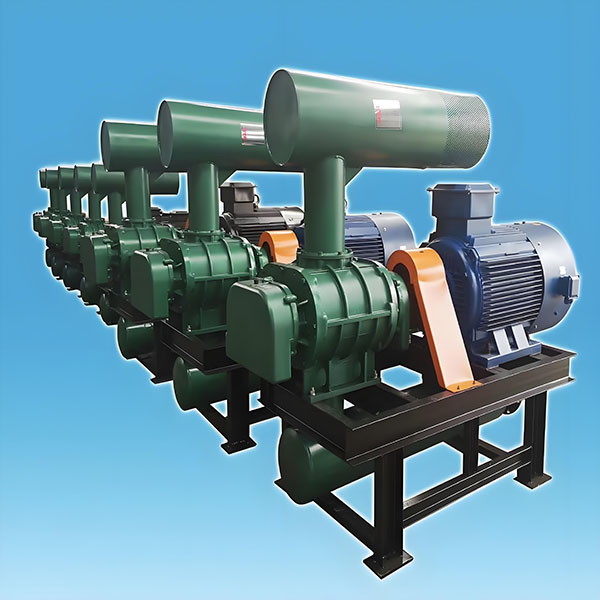

High Pressure Integration Roots Blower for Electronics Manufacturing Plant

Product Introduction

The blower's specifications – including model number, bore, r.p.m., discharge pressure, air capacity, and required power – are provided in performance tables.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

The blower model, bore size, rotational speed, and required power are identifiable in the performance table using the pre-calculated air capacity and discharge pressure.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay.

Delivery

We can delivery the products by any methods as your wish.

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
