Consolidated Oxidation Air Blower For Steel Mill Textile Mill Manufacture

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

Consolidated Oxidation Blower

Place Of Origin:

China

Certification:

CE, ISO9001, ISO14001

Package:

Wooden Case

Factory Production Capacity:

3,000 Units/Month

Production Time:

Shipment Within 7 Days After Payment Receipt

MOQ:

1 Set

Payment Methods:

T/T, L/C

Packaging Details:

Packed in Wooden Cases

Highlight:

Consolidated Oxidation Air Blower

Steel Mill Oxidation Air Blower

Textile Mill Oxidation Air Blower

Product Description

Consolidated Oxidation Blower for Steel Mill Textile Mill Manufacture

Product Introduction

Our blower comprises three critical parts, one of which is the ternary flow impeller. The impeller, constructed with 7075 material, ensures stable operation under extremely high speeds. It is precision-manufactured by a five-axis machining center and designed with the ternary flow idea, reaching a multi-variable efficiency of 92%. The second part is a high-speed permanent magnet motor, which employs advanced motor air-cooling technology, with an efficiency of 97%. This motor features frequency conversion speed control, high energy efficiency, simple overall structure, high power density, extensive amplitude range, strong overload capability, and high reliability. The third is an air bearing, which uses a self-acting dynamic pressure air bearing supported by a flexible surface. It is characterized by long operation life, high reliability, good stability, strong bearing capacity, and high temperature resistance. Without lubrication, it has nearly no power loss, with significant energy-saving effects. No friction is present inside the dynamic pressure air bearing, which reduces rotor vibration. The rotor amplitude is below 0.02mm, and it has withstood 20,000 start-stop tests, making it a semi-permanent bearing in reality.

Consolidated Oxidation Air Blower For Steel Mill Textile Mill Manufacture 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

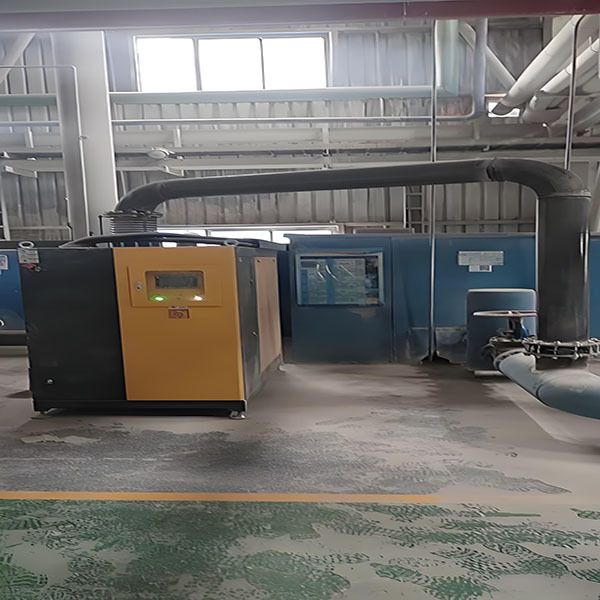

Product Show

Products Advantages

High-efficiency & energy-saving design with average electricity savings exceeding 30%—Saves >30% electricity compared to traditional Roots blowers
Fully Enclosed Casing, Low Noise & Vibration-Free—Noise levels <80 dB, zero vibration, Eliminates the need for foundations or anchor bolts
IOT Smart Control & Efficient Air Energy Management—Intuitive touchscreen with 5 operating modes and 5-layer protection for intelligent, user-friendly operation
Oil-Free & Maintenance-Free, Semi-Permanent Lifespan—Advanced magnetic bearing technology ensures 20+ years of service with no efficiency degradation over time
Compact & Easy Installation—Highly integrated design, Compact, lightweight, and portable for flexible deployment

Applications

Wastewater Treatment Plant
Cement Plant
Steel Mill
Chemical Powder Handling Plant
Flue Gas Desulfurization Plant
Electroplating Plant
Sandblasting Facility
Electronics Manufacturing Plant
Food Processing Plant
Pharmaceutical Manufacturing Plant
Paper Mill
Textile Mill
Dyeing and Printing Plant

Our Service

Professional Team
Reliable Technology
24 Hours Service

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
