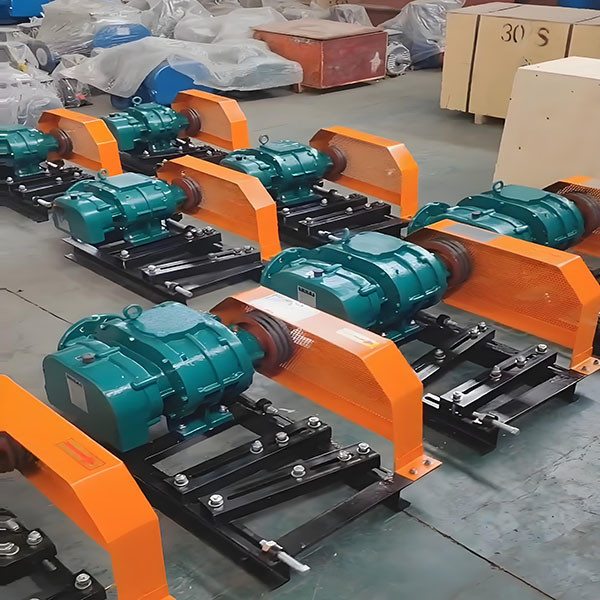

High Technology Assembly Roots Blower For Sandblasting Facility Textile Mill

Integration Consolidated Roots Blower for Paper Mill Textile Mill

Product Introduction

The performance tables give model number,bore, r.p.m, discharge pressure, air capacity and required power of the blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

According to the air capacity and discharge pres.sure as calculated above,the model, bore, r.p.m. and required power can be found in the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Our Service

A professional team of highly skilled engineers and technicians with extensive industry experience lies at the core of our service. We take pride in offering customized solutions that perfectly align with your operational needs. From the initial system design to installation, maintenance, and performance optimization, our experts provide comprehensive support to ensure seamless integration with your production processes. With profound expertise in various industrial applications, we act as your trusted technical partner, offering professional guidance at every stage.

Recognizing that production runs 24/7, we offer round-the-clock service to keep your operations uninterrupted. Our dedicated support team is available around the clock to address any technical issues or emergencies. With strategically positioned service centers and a comprehensive spare parts inventory, we ensure rapid response times, whether via remote diagnostics, on-site repairs, or immediate parts replacement. Our proactive maintenance programs further help prevent unexpected downtime.

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
