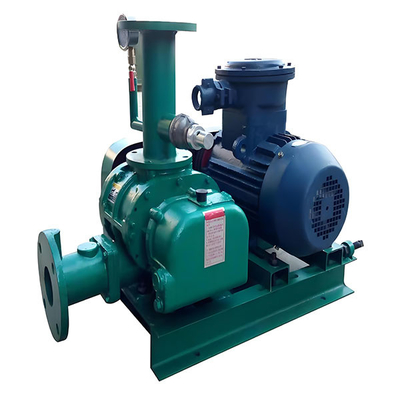

Industrial All In One Roots Blower Rotary Lobe Blower For Steel Mill Sandblasting Facility

All in One Roots Blower for Steel Mill Sandblasting Facility

Product Introduction

The performance tables give model number,bore, r.p.m, discharge pressure, air capacity and required power of the blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

According to the air capacity and discharge pres.sure as calculated above,the model, bore, r.p.m. and required power can be found in the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Manufacturer Introduction

Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.

Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.

Our History

Our company was founded in 2007, in the next 3 years we had gone to Korea to learn the high technology to develop our products. In 2013, our products have been widely used in Chinese market to save cost, increase efficiency, and decrease noise. To match the market all over the world, we have developed the high pressure products which are more than 4000KPA with more than 30 patent technologies from 2020. Nowadays, according to products updates in quality and convenience, our products are increasingly accepted by more and more customers.

• Get requirements to match products
• Quotation
• Receive payment
• Production
• Packing with wooden cases
• Delivery
• Feedback

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
