Holistic Full Wastewater Aeration Blower Aquaculture Sewage Treatment Plant Blower

Holistic Full Wastewater Aeration Blower Used in Aquaculture Sewage Industry

Product Introduction

The tables display blower specifications including model, bore, operating speed, discharge pressure, airflow capacity, and power consumption.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The conversion between discharge air capacity and standard air capacity is defined by the subsequent equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

From supplied air capacity and discharge pressure values, the performance chart derives model type, bore dimension, operating speed, and power parameters.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

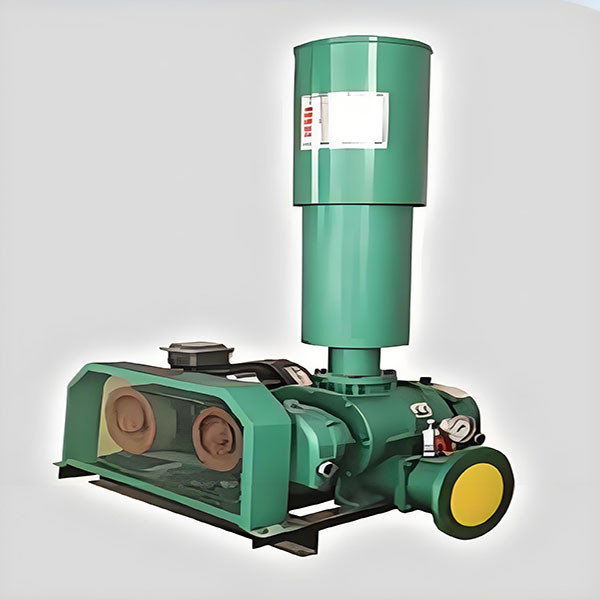

Product Show
