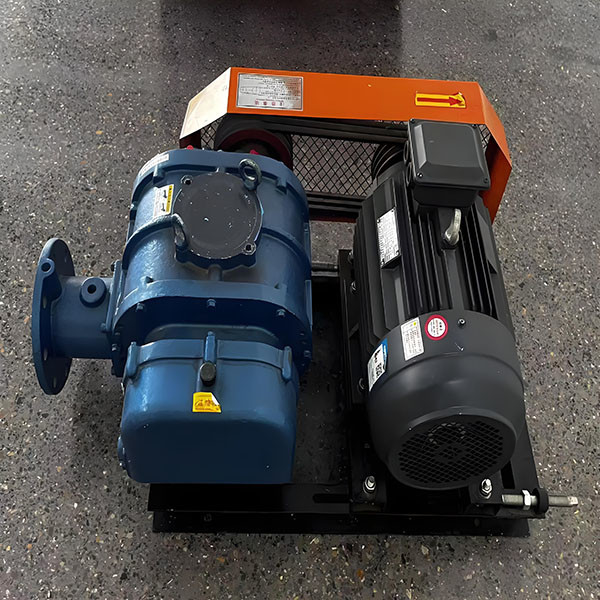

All In One Integration Wastewater Aeration Blower For Steel Mill

All in One Integration Wastewater Aeration Blower for Steel Mill

Product Introduction

Blower performance tables specify model number, cylinder diameter, revolutions per minute, outlet pressure, air delivery, and required power.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

Apply the following equation to convert actual discharge air capacity into standardized air capacity values.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Using predetermined airflow and outlet pressure, the performance chart identifies: model number, cylinder diameter, rotational speed, and power requirements.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Transaction Process

The transaction process starts by gathering client specifications to identify suitable products. This preliminary stage involves in-depth discussions to grasp exact needs, preferences, and technical details. Precise needs evaluation guarantees that recommended offerings fully align with the client’s expectations.
After requirement validation, we issue an official proposal. This document details product specifications, cost breakdowns, shipping arrangements, and payment terms. Transparent pricing builds trust and enables customers to make informed decisions.
Upon acceptance of the quotation, the subsequent action is payment handling. Transaction options may include bank transfers or digital payment systems. A secure and streamlined payment process guarantees hassle-free financial operations.
Post-payment confirmation, production commences. Rigorous quality control measures are enforced throughout the manufacturing process to comply with industry standards and client specifications. Following scheduled timelines is vital to prevent setbacks.
Post-production, goods are securely packaged in sturdy wooden crates for transportation, reducing the risk of damage during handling. Careful packaging demonstrates corporate responsibility and safeguards product quality.
The final steps include logistics fulfillment and post-delivery evaluation. Collecting client feedback allows us to assess performance and identify areas for improvement. This cyclical approach strengthens long-term business partnerships.

Delivery

We can delivery the products by any methods as your wish.

Our Service

• Professional Team
• Reliable Technology
• 24 Hours Service
