Industrial Consolidated Magnetically Levitated Blower For Flue Gas Desulfurization Plant

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

Magnetic Levitation Blower For Flue Gas Desulfurization Plant

Place Of Origin:

China

Certification:

CE, ISO9001, ISO14001

Package:

Wooden Case

Delivery Methods:

By Air, Sea, Land, Express

Factory Production Capacity:

3,000 Units/Month

Applications:

Flue Gas Desulfurization Plant

MOQ:

1 Set

Packaging Details:

Packed in Wooden Cases

Highlight:

Consolidated Magnetically Levitated Blower

Industrial Magnetically Levitated Blower

Product Description

Consolidated Magnetic Levitation Blower for Flue Gas Desulfurization Plant

Product Introduction

This diagram illustrates the air - flow system of motor - related equipment, which consists of multiple key components to ensure the normal operation of the motor.
First, let's look at the air - flow paths. There are three main types of lines: the red Hot Air Flow Line, the blue Cool Air Flow Line, and the yellow Sensor Line.
The Cool Air Flow Line (blue) starts from the Filter on the left. The filter is used to purify the incoming air, removing impurities to prevent them from damaging the subsequent components. The purified cool air then flows to the motor. The motor is the core component, and the cool air helps to maintain an appropriate operating temperature for it. After passing through the motor, the air may carry heat and becomes hot air, entering the Hot Air Flow Line (red).
The Hot Air Flow Line has several branches. One branch leads to the Blow Off Valve. When necessary, the blow - off air can be released through this valve, and then passes through a Silencer to reduce noise before being discharged as Blow Off Air. Another branch is the Motor Cooling Air path, which also goes through a Silencer to minimize noise and then discharges the hot air.

Industrial Consolidated Magnetically Levitated Blower For Flue Gas Desulfurization Plant 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

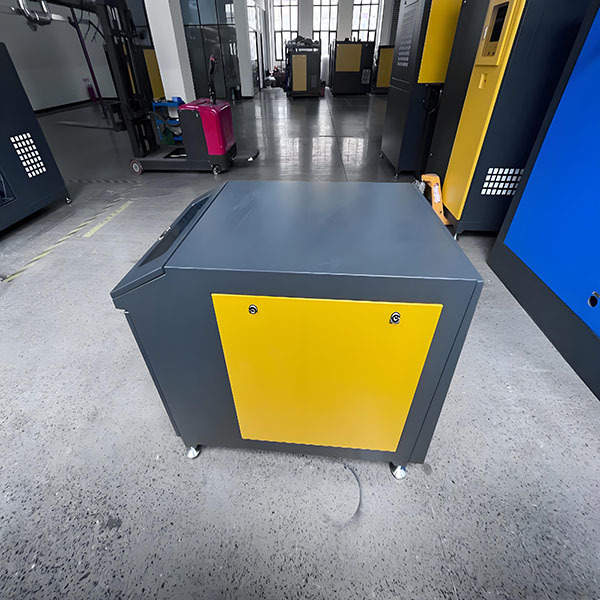

Product Show

Delivery

We can delivery the products by any methods as your wish.

Transaction Process

Get requirements to match products
Compare with the Roots blower
Quotation
Receive payment
Production
Packing in wooden cases
Delivery
Feedback

Products Advantages

High-efficiency & energy-saving design with average electricity savings exceeding 30%—Saves >30% electricity compared to traditional Roots blowers
Fully Enclosed Casing, Low Noise & Vibration-Free—Noise levels <80 dB, zero vibration, Eliminates the need for foundations or anchor bolts
IOT Smart Control & Efficient Air Energy Management—Intuitive touchscreen with 5 operating modes and 5-layer protection for intelligent, user-friendly operation
Oil-Free & Maintenance-Free, Semi-Permanent Lifespan—Advanced magnetic bearing technology ensures 20+ years of service with no efficiency degradation over time
Compact & Easy Installation—Highly integrated design, Compact, lightweight, and portable for flexible deployment

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
