High Air Flow Magnetic Bearing Blower High Pressure Maglev Blower For Electroplating Plant

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

High Air Flow Magnetic Levitation Blower

Place Of Origin:

China

Package:

Wooden Case

Delivery Methods:

By Air, Sea, Land, Express

Factory Production Capacity:

3,000 Units/Month

Production Time:

Shipment Within 7 Days After Payment Receipt

MOQ:

1 Set

Applications:

Electroplating Plant

Packaging Details:

Packed in Wooden Cases

Highlight:

High Flow Magnetic Bearing Blower

Electroplating Magnetic Bearing Blower

High Pressure Maglev Blower

Product Description

High Air Flow Magnetic Levitation Blower for Electroplating Plant

Product Introduction

The rotation rate (RPM) of the high-speed permanent magnet synchronous motor is controlled by a variable-frequency drive. Directly connected to the spindle assembly, this configuration improves power transfer efficiency and reduces operational noise. The implementation of gas suspension bearings eliminates physical contact interfaces, thereby reducing mechanical friction (with peak efficiency between 96% and 98%). Optimized with advanced impeller core technology, this permanent magnet motor system achieves over 30% energy conservation.

High Air Flow Magnetic Bearing Blower High Pressure Maglev Blower For Electroplating Plant 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

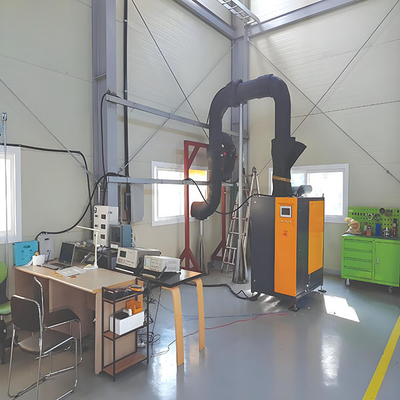

Product Show

Delivery

We can delivery the products by any methods as your wish.

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
