Industrial Magnetic Levitation Blower High Speed Maglev Blower For Cement Industry

Industrial Magnetic Levitation Blower High Speed Maglev Blower For Cement Industry

Brand Name: Frezer
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3,000 Units/Month
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001, ISO14001
Product Name:
Magnetic Levitation Blower For Cement Industry
Place Of Origin:
China
Production Time:
Shipment Within 7 Days After Payment Receipt
Package:
Wooden Case
Delivery Methods:
By Air, Sea, Land, Express
Factory Production Capacity:
3,000 Units/Month
MOQ:
1 Set
Packaging Details:
Packed in Wooden Cases
Highlight:

Industrial Magnetic Levitation Blower

,

Magnetic Levitation Blower High Speed

,

Industrial Maglev Blower

Product Description

Full Industrial Magnetic Levitation Blower for Cement Industry



Product Introduction



The rotational speed (RPM) of the high - speed permanent magnet synchronous motor is regulated by a frequency converter. It is directly coupled to the spindle, enhancing power transmission efficiency and decreasing noise. The adoption of air bearings removes physical contact points, thereby minimizing mechanical friction (with maximum efficiency ranging from 96% to 98%).
High - speed permanent magnet motor featuring air bearings, optimized through high - efficiency impeller core technology, realizes more than 30% energy savings.

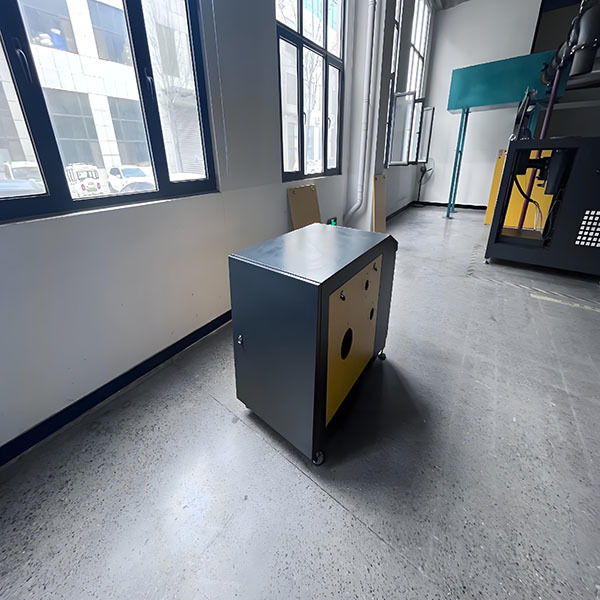

Industrial Magnetic Levitation Blower High Speed Maglev Blower For Cement Industry 0



Product Specification



Details ST10 ST20 ST30 ST50 ST75 ST100 ST125 ST150 ST200 ST250 ST300 ST350 ST400 ST500 ST600 Cooling Method
Type SINGLE GRADE   DOUBLE GRADE
Discharge Pressure(KPA) Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance Air Cooling
40 10 18
60 7.5 15 20 34 51 69 82 105 140 175 210   280 345 420
70   13 18 30 45 60 74 90 120 150 180   240 300 360
80   12 17 28 42 54 70 84 109 135 164   218 270 328
90         37 50 61 71 92   140   184
100         34 45 55 67 87   133     230 260
150           32 48 60 69 81 121 125
200               56 65 71   85       Water Cooling
300                     105 79
350           20     37     72
400                 25     65
Motor Power(KW) 7.5 15 22 37 55 75 90 110 150 185 220 250 300 375 450
Discharge Pipe(KW) 80 100 150 150 200 200 200 200 200 200 200 200 200 200 200
Size(MM) Width 800 800 800 800 1000 1000 1000 1000 1000 1000 1200 1300 1300 1300 1300
Length 1250 1250 1250 1250 1620 1620 1620 1620 1620 1620 2200 2700 2700 2700 2700
Height 970 970 970 970 1525 1525 1525 1525 1525 1525 1916 2115 2115 2115 2115
Weight 680 680 680 750 800 960 960 1050 1050 1100 1320 1580 1580 1800 1800



Product Show

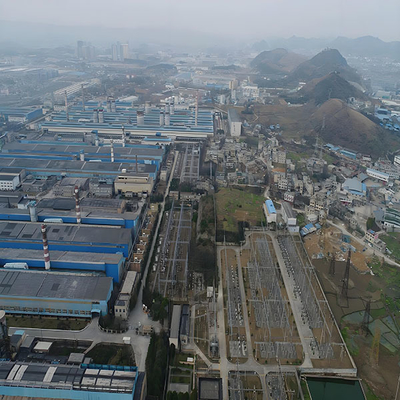

Industrial Magnetic Levitation Blower High Speed Maglev Blower For Cement Industry 1

Industrial Magnetic Levitation Blower High Speed Maglev Blower For Cement Industry 2



Products Advantages



  • High-efficiency & energy-saving design with average electricity savings exceeding 30%—Saves >30% electricity compared to traditional Roots blowers
  • Fully Enclosed Casing, Low Noise & Vibration-Free—Noise levels <80 dB, zero vibration, Eliminates the need for foundations or anchor bolts
  • IOT Smart Control & Efficient Air Energy Management—Intuitive touchscreen with 5 operating modes and 5-layer protection for intelligent, user-friendly operation
  • Oil-Free & Maintenance-Free, Semi-Permanent Lifespan—Advanced magnetic bearing technology ensures 20+ years of service with no efficiency degradation over time
  • Compact & Easy Installation—Highly integrated design, Compact, lightweight, and portable for flexible deployment



Transaction Process



  • Get requirements to match products
  • Compare with the Roots blower
  • Quotation
  • Receive payment
  • Production
  • Packing in wooden cases
  • Delivery
  • Feedback



Applications



  • Wastewater Treatment Plant
  • Cement Plant
  • Steel Mill
  • Chemical Powder Handling Plant
  • Flue Gas Desulfurization Plant
  • Electroplating Plant
  • Sandblasting Facility
  • Electronics Manufacturing Plant
  • Food Processing Plant
  • Pharmaceutical Manufacturing Plant
  • Paper Mill
  • Textile Mill
  • Dyeing and Printing Plant



FAQ



Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
