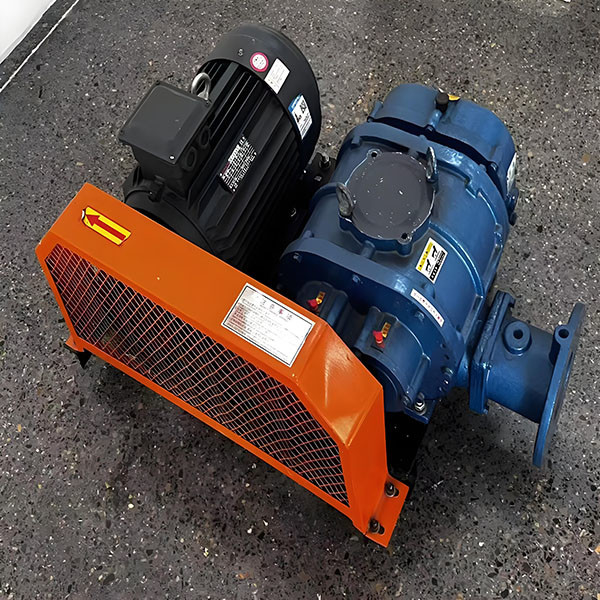

Integration Pneumatic Conveying Blowers For Cement Plant 50A - 300A Bore

Integration Whole High Efficiency Pneumatic Conveying Blower for Cement Plant

Product Introduction

Performance charts list blower specifications: model, bore, RPM, output pressure, air volume, and required power.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

One can convert the discharge air capacity to the standard air capacity via the equation below.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Refer to the performance table with your computed airflow volume and discharge pressure values to select the appropriate model, bore diameter, rotational speed (RPM), and power rating.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Our Service

Applications

• Wastewater Treatment Plant
• Cement Plant
• Steel Mill
• Chemical Powder Handling Plant
• Flue Gas Desulfurization Plant
• Electroplating Plant
• Sandblasting Facility
• Electronics Manufacturing Plant
• Food Processing Plant
• Pharmaceutical Manufacturing Plant
• Paper Mill
• Textile Mill
• Dyeing and Printing Plant

Transaction Process

• Get requirements to match products
• Quotation
• Receive payment
• Production
• Packed in wooden cases
• Delivery
• Feedback

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay
