Pneumatic Conveying Blower
Created with Pixso.

High Air Flow Pneumatic Conveying Blower 40KPa - 400KPa For Dyeing And Printing Plant

High Air Flow Pneumatic Conveying Blower 40KPa - 400KPa For Dyeing And Printing Plant

Brand Name: Frezer
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3,000 Units/Month
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001, ISO14001
Product Name:
High Air Flow Pneumatic Conveying Blower
Place Of Origin:
China
Certification:
CE, ISO9001, ISO14001
Delivery Methods:
By Air, Sea, Land, Express
Applications:
Dyeing And Printing Plant
Pressure:
40KPa-400KPa
Payment Methods:
T/T, L/C
Package:
Wooden Case
Packaging Details:
Packed in Wooden Cases
Highlight:

High Flow Pneumatic Conveying Blower

,

Pneumatic Conveying Blower 40KPa

,

High Air Flow Blower 400KPa

Product Description

High Air Flow Pneumatic Conveying Blower for Dyeing and Printing Plant



Product Introduction



An exploded view of a precision device integrating a high-speed permanent magnet synchronous motor and a fluid power system is presented here, clearly showing the composition and cooperative logic of core components. The Stator and Rotor are the main body of the motor. The stator creates a rotating magnetic field to drive the rotor, realizing the conversion of electrical energy into mechanical energy. Equipped with an Air bearing, which applies gas lubrication to eliminate physical contact. Together with a Thrust bearing and a Radial bearing to bear radial loads, it greatly reduces mechanical friction, ensures the rotor operates at high speed and stability, and assists the equipment in achieving an efficiency of 96% - 98%.


High Air Flow Pneumatic Conveying Blower 40KPa - 400KPa For Dyeing And Printing Plant 0



Product Specification



Details ST10 ST20 ST30 ST50 ST75 ST100 ST125 ST150 ST200 ST250 ST300 ST350 ST400 ST500 ST600 Cooling Method
Type SINGLE GRADE   DOUBLE GRADE
Discharge Pressure(KPA) Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance Air Cooling
40 10 18
60 7.5 15 20 34 51 69 82 105 140 175 210   280 345 420
70   13 18 30 45 60 74 90 120 150 180   240 300 360
80   12 17 28 42 54 70 84 109 135 164   218 270 328
90         37 50 61 71 92   140   184
100         34 45 55 67 87   133     230 260
150           32 48 60 69 81 121 125
200               56 65 71   85       Water Cooling
300                     105 79
350           20     37     72
400                 25     65
Motor Power(KW) 7.5 15 22 37 55 75 90 110 150 185 220 250 300 375 450
Discharge Pipe(KW) 80 100 150 150 200 200 200 200 200 200 200 200 200 200 200
Size(MM) Width 800 800 800 800 1000 1000 1000 1000 1000 1000 1200 1300 1300 1300 1300
Length 1250 1250 1250 1250 1620 1620 1620 1620 1620 1620 2200 2700 2700 2700 2700
Height 970 970 970 970 1525 1525 1525 1525 1525 1525 1916 2115 2115 2115 2115
Weight 680 680 680 750 800 960 960 1050 1050 1100 1320 1580 1580 1800 1800

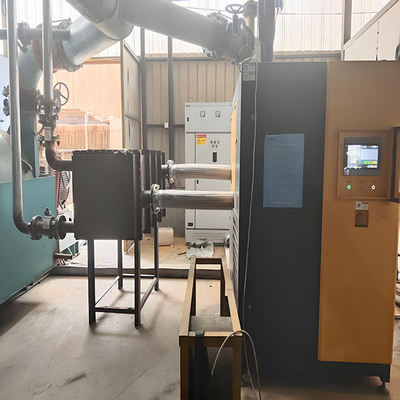

Product Show



High Air Flow Pneumatic Conveying Blower 40KPa - 400KPa For Dyeing And Printing Plant 1

High Air Flow Pneumatic Conveying Blower 40KPa - 400KPa For Dyeing And Printing Plant 2



Applications



  • Wastewater Treatment Plant
  • Cement Plant
  • Steel Mill
  • Chemical Powder Handling Plant
  • Flue Gas Desulfurization Plant
  • Electroplating Plant
  • Sandblasting Facility
  • Electronics Manufacturing Plant
  • Food Processing Plant
  • Pharmaceutical Manufacturing Plant
  • Paper Mill
  • Textile Mill
  • Dyeing and Printing Plant



Delivery



High Air Flow Pneumatic Conveying Blower 40KPa - 400KPa For Dyeing And Printing Plant 3



We can delivery the products by any methods as your wish.



Our Service



  • Professional Team
  • Reliable Technology
  • 24 Hours Service



Our History



Our company was founded in 2007, in the next 3 years we had gone to Korea to learn the high technology to develop our products. In 2013, our products have been widely used in Chinese market to save cost, increase efficiency, and decrease noise. To match the market all over the world, we have developed the high pressure products which are more than 4000KPA with more than 30 patent technologies from 2020. Nowadays, according to products updates in quality and convenience, our products are increasingly accepted by more and more customers.
