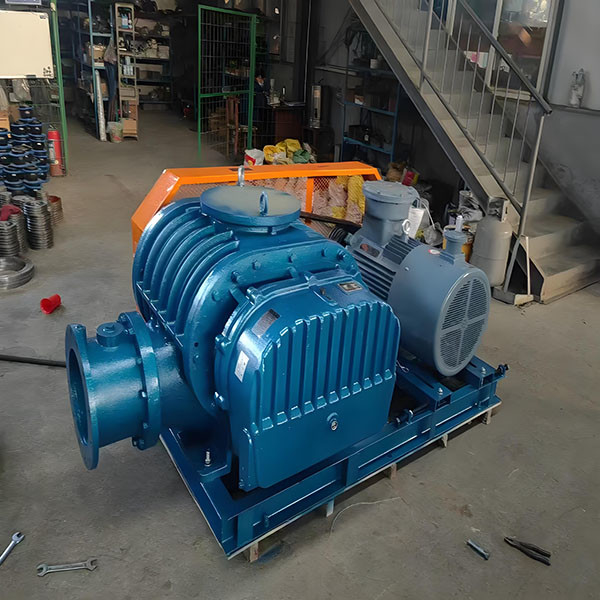

50A - 300A Bore Industrial Air Knife Blower Consolidated High Efficiency

Whole Consolidated High Efficiency Industrial Air Knife Blower

Product Introduction

The specification sheets detail the blower's model number, cylinder bore, rotational speed (RPM), discharge pressure, airflow capacity, and power requirements.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Based on the calculated airflow volume and discharge pressure values, the corresponding model number, cylinder bore, rotational speed (RPM), and power consumption can be determined from the performance specifications table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Our Service

• Professional Team
• Reliable Technology
• 24 Hours Service

Our History

Our company was founded in 2007, in the next 3 years we had gone to Korea to learn the high technology to develop our products. In 2013, our products have been widely used in Chinese market to save cost, increase efficiency, and decrease noise. To match the market all over the world, we have developed the high pressure products which are more than 4000KPA with more than 30 patent technologies from 2020. Nowadays, according to products updates in quality and convenience, our products are increasingly accepted by more and more customers.

Delivery

Efficient delivery solutions are essential in the global business landscape. We offer an extensive array of shipping methods to meet your needs, leveraging well - known logistics services.
We also employ traditional shipping methods such as sea freight, which is suitable for large - volume, non - urgent cargo, and road transport for local or regional deliveries, using vehicles to ensure your goods arrive safely. Whether you need to send a document urgently by air or ship a container of products by sea, we can deliver products via any method as per your preference.
