All In One High Speed Wastewater Aeration Blower For Chemical Powder Handling Plant

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

All In One Wastewater Aeration Blower

Place Of Origin:

China

Certification:

CE, ISO9001, ISO14001

Pressure:

40KPa-400KPa

Factory Production Capacity:

3,000 Units/Month

Production Time:

Shipment Within 7 Days After Payment Receipt

Applications:

Chemical Powder Handling Plant

Package:

Wooden Case

Packaging Details:

Packed in Wooden Cases

Highlight:

All In One Wastewater Aeration Blower

High Speed Wastewater Aeration Blower

Product Description

All in One Wastewater Aeration Blower for Chemical Powder Handling Plant

Product Introduction

Our blower incorporates three critical components. First is the ternary flow impeller made of 7075 aluminum alloy, enabling stable ultra-high speed operation. Precision-machined using five-axis CNC technology and designed with ternary flow principles, it achieves 92% multi-variable efficiency. Second is the high-efficiency permanent magnet motor featuring advanced air-cooling technology (97% efficiency), with characteristics including variable frequency speed control, energy efficiency, compact structure, high power density, wide speed range, strong overload capacity, and excellent reliability. Third is the self-acting hydrodynamic air bearing with flexible surface support, offering exceptional durability, reliability, stability, load capacity, and heat resistance. This lubrication-free design minimizes power loss, eliminates internal friction (rotor vibration <0.02mm), and has passed 20,000 start-stop cycles, making it virtually a permanent bearing solution.

All In One High Speed Wastewater Aeration Blower For Chemical Powder Handling Plant 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

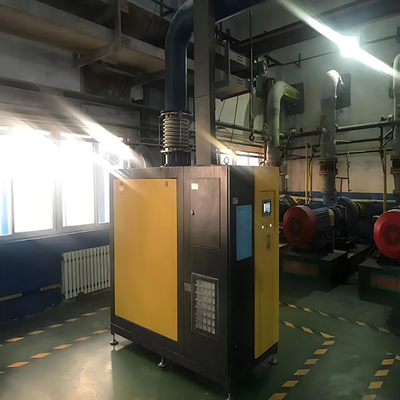

Product Show

Products Advantages

High-efficiency & energy-saving design with average electricity savings exceeding 30%—Saves >30% electricity compared to traditional Roots blowers
Fully Enclosed Casing, Low Noise & Vibration-Free—Noise levels <80 dB, zero vibration, Eliminates the need for foundations or anchor bolts
IOT Smart Control & Efficient Air Energy Management—Intuitive touchscreen with 5 operating modes and 5-layer protection for intelligent, user-friendly operation
Oil-Free & Maintenance-Free, Semi-Permanent Lifespan—Advanced magnetic bearing technology ensures 20+ years of service with no efficiency degradation over time
Compact & Easy Installation—Highly integrated design, Compact, lightweight, and portable for flexible deployment
