Full High Air Flow Dust Removal Blower for Dyeing and Printing Plant
Product Introduction
The high-speed PMSM's rotational speed is managed by a frequency converter, directly connected to the spindle to heighten power transfer efficiency and cut noise. Air bearings facilitate contactless operation, virtually removing mechanical friction (peak efficiency: 96%~98%).
Air-bearing high-speed PMSM, upgraded with high-efficiency impeller core technology, achieves over 30% energy reduction.
Product Specification
Details | ST10 | ST20 | ST30 | ST50 | ST75 | ST100 | ST125 | ST150 | ST200 | ST250 | ST300 | ST350 | ST400 | ST500 | ST600 | Cooling Method | |
Type | SINGLE GRADE | DOUBLE GRADE | |||||||||||||||
Discharge Pressure(KPA) | Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance | Air Cooling | |||||||||||||||
40 | 10 | 18 | |||||||||||||||
60 | 7.5 | 15 | 20 | 34 | 51 | 69 | 82 | 105 | 140 | 175 | 210 | 280 | 345 | 420 | |||
70 | 13 | 18 | 30 | 45 | 60 | 74 | 90 | 120 | 150 | 180 | 240 | 300 | 360 | ||||
80 | 12 | 17 | 28 | 42 | 54 | 70 | 84 | 109 | 135 | 164 | 218 | 270 | 328 | ||||
90 | 37 | 50 | 61 | 71 | 92 | 140 | 184 | ||||||||||
100 | 34 | 45 | 55 | 67 | 87 | 133 | 230 | 260 | |||||||||
150 | 32 | 48 | 60 | 69 | 81 | 121 | 125 | ||||||||||
200 | 56 | 65 | 71 | 85 | Water Cooling | ||||||||||||
300 | 105 | 79 | |||||||||||||||
350 | 20 | 37 | 72 | ||||||||||||||
400 | 25 | 65 | |||||||||||||||
Discharge Pipe(KW) | 80 | 100 | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | ||
Size(MM) | Width | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1200 | 1300 | 1300 | 1300 | 1300 | |
Length | 1250 | 1250 | 1250 | 1250 | 1620 | 1620 | 1620 | 1620 | 1620 | 1620 | 2200 | 2700 | 2700 | 2700 | 2700 | ||
Height | 970 | 970 | 970 | 970 | 1525 | 1525 | 1525 | 1525 | 1525 | 1525 | 1916 | 2115 | 2115 | 2115 | 2115 | ||
Weight | 680 | 680 | 680 | 750 | 800 | 960 | 960 | 1050 | 1050 | 1100 | 1320 | 1580 | 1580 | 1800 | 1800 |

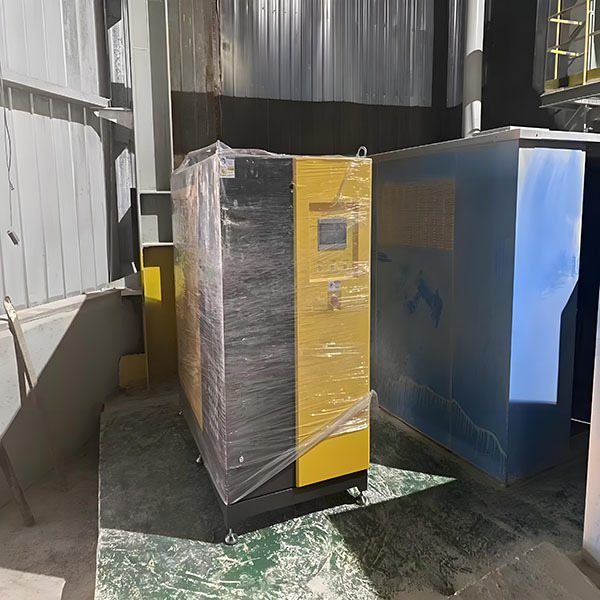

Product Show
Manufacturer Introduction
Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.
Equipped with advanced facilities, strong technical expertise, optimized production processes, and comprehensive testing methods, our products boast unique advantages such as innovative design, robust structure, high energy efficiency, low noise, user-friendly operation, and easy maintenance—features that set them apart from conventional alternatives.
Guided by the corporate philosophy of "Inclusivity Welcomes the World," we prioritize talent development. Our professional technical team, skilled workforce, cutting-edge equipment, and stringent management practices drive continuous growth, while our dedicated service ensures customer trust. We are committed to providing global clients with ultimate energy-saving air power equipment and system solutions.
Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.
Application Cases

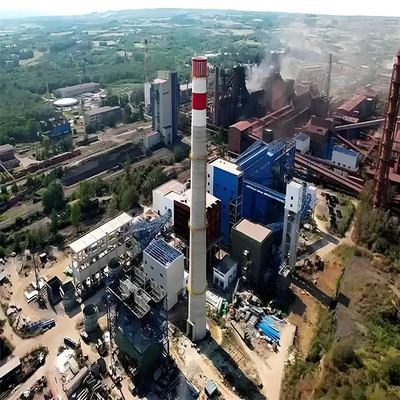

Power Industry
For the energy efficiency retrofit project of the desulfurization oxidation blowers at a customer's 2×330MW generating units, the proposed solution involves upgrading to air suspension centrifugal blowers. This upgrade aims to achieve stable operation, long-term economic benefits, and significant energy savings.
Energy-Saving Solution
With prolonged operation of the original Roots blowers, equipment aging and frequent maintenance have severely impacted system stability. The customer requires intelligent equipment that ensures reliable operation and high energy efficiency.
Supplier |
Customer Factory |
Frezer Technology |
Blower Selection |
Roots Blower |
(ST150-08) |
Number of Blower |
Eight Units |
Eight Units |
Single Unit Airflow Capacity |
67.1M3/MIN |
84M3/MIN |
Single Motor Rated Power |
185KW |
110KW |
Total Operating Power |
1480KW |
880KW |
Pressure |
84KPA |
85KPA |
System Power Savings |
1480KW-880KW=600KW |
|
Annual Power Reduction |
600KW×24H×365D=5,256,000KW.H |
|
Energy Cost Savings |
5,256,000KW.H×0.05CNY/KW.H=2,628,000CNY |
|
% Power Reduction |
600/1480=40.54% |
|
Roots Blower Maintenance Cost |
3000CNY/Year/Unit |
|
Air Suspension Blower Maintenance Cost |
1000CNY/Year/Unit |
|
Annual CO2 Emission Reduction |
5,256,000KW.H×0.997KG÷1000=5240.23T |
|
Annual Standard Coal Equivalent Saved |
5,256,000KW.H×0.35KG÷1000=1839.6T |
Retrofit Advantages
