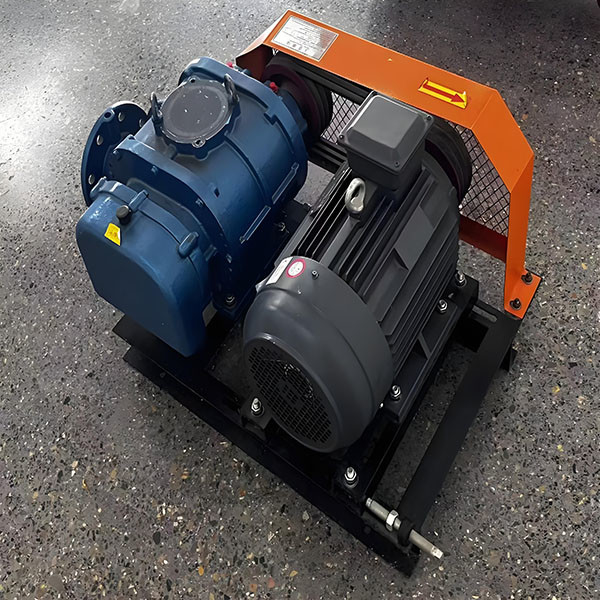

Industrial Pneumatic Driven Air Blower All in One Conveying Blowers

All in One Pneumatic Conveying Blower Used in Flue Gas Desulfurization Plant

Product Introduction

Performance tables contain technical specifications like model number, bore, operating speed, discharge pressure, air capacity, and power consumption for each blower.

The tables indicate the air capacity under the standard suction state, which is herein defined as the condition at 20℃, 1.0332Kgf/cm² (101.3KPa) absolute pressure, and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

The performance table enables identification of blower model, bore diameter, rotational speed (RPM), and power requirements based on pre-calculated airflow capacity and discharge pressure values.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

Product Show

Delivery

Why Opt for Worldwide Express for Your Deliveries?
At Worldwide Express, we partner with leading logistics firms to ensure your shipments are delivered promptly, safely, and dependably. Whether you need air cargo, ground shipping, or express services, we provide flexible solutions tailored to your requirements.
Our EHS standards guarantee responsible handling of your products, reducing risks and environmental impact. With worldwide coverage and live tracking, you can rely on us for smooth logistics operations—anywhere, anytime.

Your Delivery, Your Rules!

• Fast & Dependable – ensures timely delivery
• Global Reach – Ship to 220+ countries
• Safety Compliance – EHS-compliant handling
• Tailored Solutions – Choose air, sea, or land transport

Our History

Our company was founded in 2007, in the next 3 years we had gone to Korea to learn the high technology to develop our products. In 2013, our products have been widely used in Chinese market to save cost, increase efficiency, and decrease noise. To match the market all over the world, we have developed the high pressure products which are more than 4000KPA with more than 30 patent technologies from 2020. Nowadays, according to products updates in quality and convenience, our products are increasingly accepted by more and more customers.

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
