Brand Name: | Frezer |
MOQ: | 1 Set |
Price: | Negotiable |
Payment Terms: | T/T,L/C,Western Union |
Supply Ability: | 3,000 Units/Month |

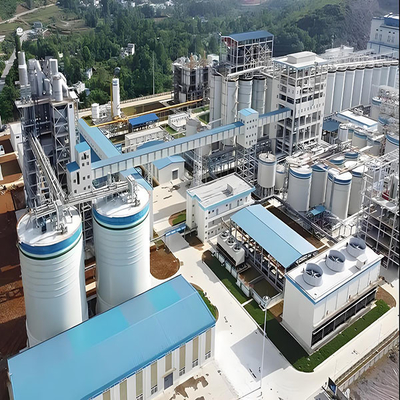

Holistic Industrial Pneumatic Conveying Blower for Dyeing and Printing Plant
Product Introduction
Technical specifications such as model number, bore size, rotational speed (r.p.m.), discharge pressure, airflow capacity, and power consumption are listed in the performance tables for each blower.
The air capacity in the tables is expressed under the standard suction state. The standard suction state defined herein refers to the conditions of 20℃ temperature, 1.0332Kgf/cm2 (101.3KPa) absolute pressure, and 65% relative humidity.
The reference air capacity (temperature 0℃ and 1.0332kgf/cm2 (101.3kpa) absolute pressure) is generally indicated in Nm3/min.
However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.
Qs = QNx1.0732
Where, Qs: standard air capacity (m3/min); and
QN: reference air capacity (m3/min).
The discharge air capacity can be converted into the standard air capacity by the following equation.
Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)
Where, Qd : discharge air capacity, in m3/min;
Pd : discharge pressure, in Kgf/cm2,
Ts : suction temperature, in ℃,
Td : discharge temperature, in ℃.
Using calculated air capacity and discharge pressure, identify the matching model, bore, RPM, and power specifications from the performance chart.
Sl Units Conversion Table ( Sl Units in Heavy Lines )
Pressure | Pa | Bar | Kgf/cm2 | atm | mmH2O | MmHg(Torr) |
1 1×105 9.806 65×104 1.013 25×105 9.806 65 1.333 22×102 |
1×105 1 9.806 6525×10-1 1.013 25 9.806 6525×10-5 1.333 2225×10-3 |
1.019 72×10-5 1.019 72 1 1.033 23 1×10-4 1.359 51×10-3 |
9.869 23×10-6 9.869 23×10-1 9.678 41×10-1 1 9.678 41×10-5 1.315 79×10-3 |
1.019 72×10-1 1.019 72×104 1×104 1.033 23×104 1 1.359 51×10 |
7.500 62×10-5 7.500 62×102 7.355 59×102 7.600 00×102 7.355 59×10-2 1 |
|
Product Specification
Mark Type |
Bore | A | B | C | D | E | F | G | H | J |
SR-50 | 50A | 570 | 179 | 135 | 895 | 152 | 230 | 540 | 420 | 60 |
SR-65 | 65A | 610 | 202 | 145 | 970 | 192 | 230 | 600 | 440 | 80 |
SR-80 | 80A | 700 | 225 | 165 | 1130 | 217 | 280 | 650 | 500 | 75 |
SR-100 | 100A | 900 | 265 | 175 | 1255 | 234 | 280 | 850 | 630 | 110 |
SR-125 | 125A | 945 | 294 | 205 | 1525 | 260 | 355 | 920 | 710 | 105 |
SR-150 | 150A | 1155 | 377 | 225 | 1745 | 305 | 400 | 1150 | 950 | 100 |
SR-175 | 200A | 1300 | 457 | 245 | 1765 | 305 | 520 | 1330 | 1030 | 150 |
SR-200 | 200A | 1570 | 550 | 276 | 2230 | 405 | 591 | 1600 | 1300 | 150 |
SR-250 | 250A | 1847 | 596 | 445 | 2790 | 520 | 760 | 2200 | 1800 | 2300 |
SR-300 | 300A | 2167 | 683 | 470 | 2805 | 520 | 750 | 2500 | 2040 | 230 |
Mark Type |
Bore | K | L | M | N | O | P | Q | R | n-Φ1 | Weight |
SR-50 | 50A | ― | ― | 260 | 220 | 122 | 20 | 80 | 60 | 4-Φ14 | 72 |
SR-65 | 65A | ― | ― | 300 | 260 | 122 | 20 | 80 | 80 | 4-Φ14 | 84 |
SR-80 | 80A | ― | ― | 370 | 330 | 147 | 20 | 80 | 75 | 4-Φ19 | 132 |
SR-100 | 100A | ― | ― | 400 | 360 | 114 | 20 | 80 | 110 | 4-Φ19 | 168 |
SR-125 | 125A | 355 | 355 | 430 | 390 | 175 | 20 | 100 | 105 | 6-Φ19 | 245 |
SR-150 | 150A | 475 | 475 | 500 | 455 | 190 | 22.5 | 100 | 165 | 6-Φ19 | 408 |
SR-175 | 200A | 515 | 515 | 500 | 455 | 310 | 22.5 | 100 | 240 | 6-Φ19 | 505 |
SR-200 | 200A | 650 | 650 | 650 | 605 | 348 | 22.5 | 126 | 240 | 6-Φ19 | 900 |
SR-250 | 250A | 900 | 900 | 950 | 870 | 250 | 40 | 140 | 250 | 6-Φ24 | 1653 |
SR-300 | 300A | 1020 | 1020 | 950 | 870 | 240 | 40 | 140 | 270 | 6-Φ24 | 2132 |

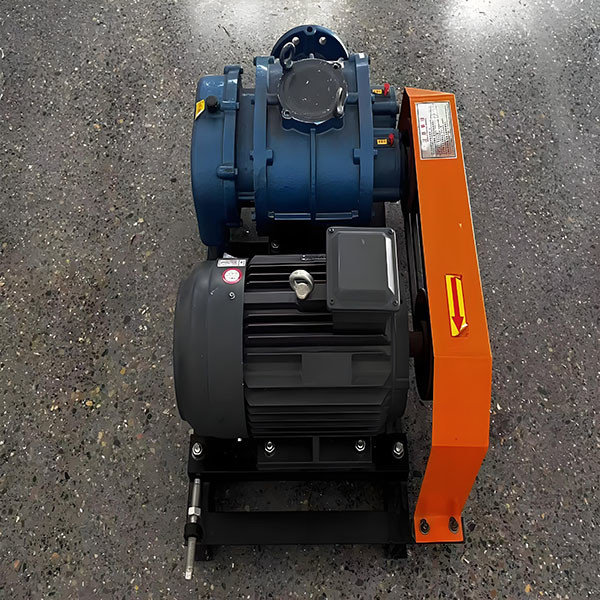

Product Show
Our Service
Backed by a seasoned team of engineers and technicians with decades of field expertise, we engineer tailor-made Roots blower systems to meet your exact operational requirements. Our experts provide end-to-end assistance—from initial system design and installation to preventive maintenance and performance optimization—guaranteeing seamless integration with your processes.
We uphold rigorous engineering standards, utilizing advanced manufacturing technologies and meticulous quality control to ensure superior efficiency, extended durability, and energy-efficient performance. Each Roots blower undergoes comprehensive testing to comply with international certifications, reducing unexpected failures and boosting productivity.
Recognizing that industrial operations run continuously, we offer 24/7 emergency support for critical technical disruptions. Our rapid-response team is always on standby, providing real-time diagnostics, prompt on-site servicing, and expedited spare parts logistics to prevent production halts.
Through unmatched technical proficiency, innovative engineering, and relentless service commitment, we strive to be your trusted reliability partner—delivering peak performance, longevity, and operational peace of mind.
