High Efficiency Industrial Dust Blower For Chemical Powder Handling Plant

High Efficiency Dust Removal Blower for Chemical Powder Handling Plant

Product Introduction

Performance tables include technical specifications such as model number, bore size, operating speed, discharge pressure, airflow capacity, and power consumption for each blower.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

Based on the air capacity and discharge pressure calculated as above, the performance table specifies the model, bore, r.p.m., and required power.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

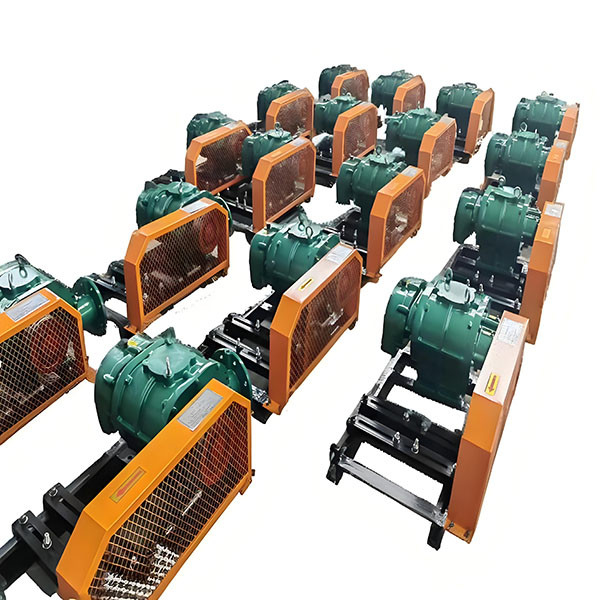

Product Show

Our Service

Our service embodies excellence, driven by a professional team of seasoned specialists who blend industry expertise with innovative methods. Every team member undergoes rigorous training to stay at the forefront of evolving trends, enabling us to deliver solutions that are both advanced and tailored to your specific needs. Complementing our human expertise is reliable technology, the foundation of our operations—from sophisticated software systems to top-tier equipment, we leverage technology to enhance efficiency, precision, and reliability in every task.

Delivery

We can delivery the products by any methods as your wish.

Transaction Process

• Get requirements to match products
• Quotation
• Receive payment
• Production
• Packed in wooden cases
• Delivery
• Feedback

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay.
