Consolidated Integration Dust Removal Blower For Iron And Steel Industry

Consolidated Integration Dust Removal Blower for Iron and Steel Industry

Product Introduction

The specification charts provide the blower's model number, bore diameter, rotational speed (RPM), outlet pressure, airflow rate, and power consumption.

The air capacity in the tables is indicated in the standard suction state.The standard suction state herein mentioned is defined as the condition at 20℃ temperature, 1.0332Kgf/cm² (101.3KPa) absolute pressure and 65% relative humidity.

The reference air capacity (temperature 0℃ and 1.0332kgf/cm² (101.3kpa) absolute pressure) is generally indicated in Nm³/min.

However, it may be converted into the standard air capacity by the following equation, if the suction pressure is equal.

Qs = QNx1.0732

Where, Qs: standard air capacity (m³/min); and

QN: reference air capacity (m³/min).

The discharge air capacity can be converted into the standard air capacity by the following equation.

Qs = Qdx (1.0332+Pd)/ 1.0332x(273+Ts)/(273 + Td)

Where, Qd : discharge air capacity, in m³/min;

Pd : discharge pressure, in Kgf/cm²,

Ts : suction temperature, in ℃,

Td : discharge temperature, in ℃.

According to the air capacity and discharge pres.sure as calculated above,the model, bore, r.p.m. and required power can be found in the performance table.

Sl Units Conversion Table ( Sl Units in Heavy Lines )

Product Specification

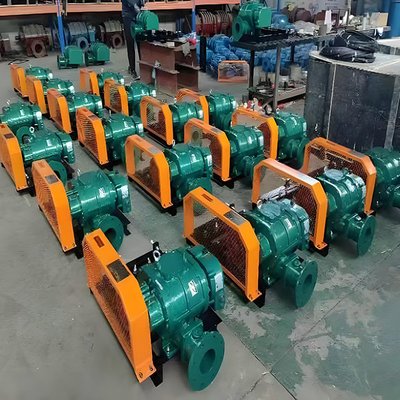

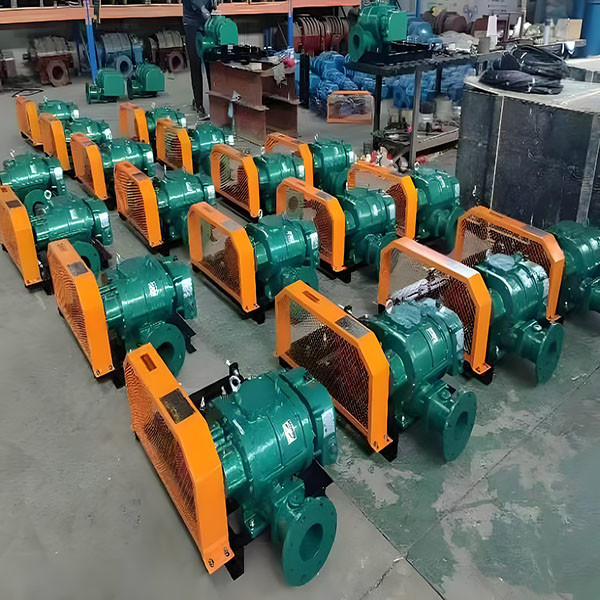

Product Show

Applications

• Wastewater Treatment Plant
• Cement Plant
• Steel Mill
• Chemical Powder Handling Plant
• Flue Gas Desulfurization Plant
• Electroplating Plant
• Sandblasting Facility
• Electronics Manufacturing Plant
• Food Processing Plant
• Pharmaceutical Manufacturing Plant
• Paper Mill
• Textile Mill
• Dyeing and Printing Plant

Our Service

• Professional Team
• Reliable Technology
• 24 Hours Service

Delivery

In the global business environment, efficient delivery solutions play a vital role.  We provide a diverse range of shipping methods to fulfill your requirements, partnering with renowned logistics services.
We also employ traditional shipping methods such as sea freight, which is suitable for large - volume, non - urgent cargo, and road transport for local or regional deliveries, using vehicles to ensure your goods arrive safely. Whether you need to send a document urgently by air or ship a container of products by sea, we can deliver products via any method as per your preference.

Payment Methods

T/T,L/C,West Union,Alibaba Trade Insurance,AliPay
