All In One Pneumatic Conveying Blower 40 - 400KPA For Chemical Powder Handling Plant

Brand Name:	Frezer
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3,000 Units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001, ISO14001

Product Name:

All In One Pneumatic Conveying Blower

Place Of Origin:

China

Certification:

CE, ISO9001, ISO14001

Delivery Methods:

By Air, Sea, Land, Express

Factory Production Capacity:

3,000 Units/Month

Production Time:

Shipment Within 7 Days After Payment Receipt

Payment Methods:

T/T, L/C

Package:

Wooden Case

Packaging Details:

Packed in Wooden Cases

Highlight:

All In One Pneumatic Conveying Blower

Pneumatic Conveying Blower 400KPA

Product Description

All in One Pneumatic Conveying Blower for Chemical Powder Handling Plant

Product Introduction

This is an exploded view of a precision device integrating a high - speed permanent magnet synchronous motor and a fluid power system, clearly presenting the composition and collaborative logic of core components. The Stator and Rotor form the main body of the motor. The stator generates a rotating magnetic field to drive the rotor, realizing the conversion from electrical energy to mechanical energy. Equipped with an Air bearing, which uses gas lubrication to eliminate physical contact. Combined with a Thrust bearing and a Radial bearing to bear radial loads, it greatly reduces mechanical friction, ensures the high - speed and stable operation of the rotor, and helps the equipment achieve an efficiency of 96% - 98%.

All In One Pneumatic Conveying Blower 40 - 400KPA For Chemical Powder Handling Plant 0

Product Specification

Details		ST10	ST20	ST30	ST50	ST75	ST100	ST125	ST150	ST200	ST250	ST300	ST350	ST400	ST500	ST600	Cooling Method
Type		SINGLE GRADE												DOUBLE GRADE
Discharge Pressure(KPA)		Air Flow(M³/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M³/Tolerance															Air Cooling
40		10	18
60		7.5	15	20	34	51	69	82	105	140	175	210		280	345	420
70			13	18	30	45	60	74	90	120	150	180		240	300	360
80			12	17	28	42	54	70	84	109	135	164		218	270	328
90						37	50	61	71	92		140		184
100						34	45	55	67	87		133			230	260
150							32	48	60	69	81	121	125
200									56	65	71		85				Water Cooling
300												105	79
350							20			37			72
400										25			65
Motor Power(KW)		7.5	15	22	37	55	75	90	110	150	185	220	250	300	375	450
Discharge Pipe(KW)		80	100	150	150	200	200	200	200	200	200	200	200	200	200	200
Size(MM)	Width	800	800	800	800	1000	1000	1000	1000	1000	1000	1200	1300	1300	1300	1300
	Length	1250	1250	1250	1250	1620	1620	1620	1620	1620	1620	2200	2700	2700	2700	2700
	Height	970	970	970	970	1525	1525	1525	1525	1525	1525	1916	2115	2115	2115	2115
Weight		680	680	680	750	800	960	960	1050	1050	1100	1320	1580	1580	1800	1800

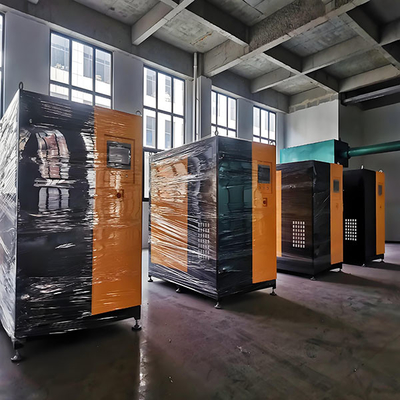

Product Show

Manufacturer Introduction

Frezer Technology Co., Ltd. is a modern high-tech enterprise specializing in the design, manufacturing, and sales of air suspension blowers. Founded in 2007 and headquartered in Chongqing—a national hub for technological innovation in western China and a renowned historical and cultural city—the company is one of the few global manufacturers with patented hybrid bearing technology.

Frezer Technology Co., Ltd. is revolutionizing more than just technology—it has pioneered a new era in the centrifugal compressor industry. Compared to traditional centrifugal blowers, our solutions reduce electricity consumption and energy costs by over 30%. Featuring a 100% oil-free system that eliminates maintenance needs, we significantly lower operational expenses for customers, revolutionizing the centrifugal machinery industry, we deliver cutting-edge energy-saving and eco-friendly blower technology for the future.

Delivery

We can delivery the products by any methods as your wish.

Our Service

Professional Team
Reliable Technology
24 Hours Service

FAQ

Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
