Air Suspension Blower
Created with Pixso.

High Air Flow Whole Air Suspension Blower For Power Industry

High Air Flow Whole Air Suspension Blower For Power Industry

High Air Flow Whole Air Suspension Blower For Power Industry

Brand Name: Frezer
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C,T/T,Western Union
Supply Ability: 3,000 Units/Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE, ISO9001, ISO14001
Product Name:
High Air Flow Air Suspension Blower
Place Of Origin:
China
Certification:
CE, ISO9001, ISO14001
Package:
Wooden Case
Payment Methods:
T/T, L/C
Applications:
Power Industry
Pressure:
40-400KPa
Factory Production Capacity:
3,000 Units/Month
Packaging Details:
Packed in Wooden Cases
Highlight:

High Flow Air Suspension Blower

,

Power Industry Air Suspension Blower

,

Power Industry High Air Flow Blower

Product Description

High Air Flow Whole Air Suspension Blower for Power Industry



Product Introduction



Product cross-section highlights critical features. Main structure combines stator and rotor, using air bearings for low-friction spin. Axial loads are borne by thrust bearings. Fluid guidance occurs via rotor-mounted impeller and volute. Air bearings enhance efficiency through wear reduction.



High Air Flow Whole Air Suspension Blower For Power Industry 0



Product Specification



Details ST10 ST20 ST30 ST50 ST75 ST100 ST125 ST150 ST200 ST250 ST300 ST350 ST400 ST500 ST600 Cooling Method
Type SINGLE GRADE   DOUBLE GRADE
Discharge Pressure(KPA) Air Flow(M3/MIN):LATM/20℃,65%Relative Humidity, Density=1.2KG/M3/Tolerance Air Cooling
40 10 18
60 7.5 15 20 34 51 69 82 105 140 175 210   280 345 420
70   13 18 30 45 60 74 90 120 150 180   240 300 360
80   12 17 28 42 54 70 84 109 135 164   218 270 328
90         37 50 61 71 92   140   184
100         34 45 55 67 87   133     230 260
150           32 48 60 69 81 121 125
200               56 65 71   85       Water Cooling
300                     105 79
350           20     37     72
400                 25     65
Motor Power(KW) 7.5 15 22 37 55 75 90 110 150 185 220 250 300 375 450
Discharge Pipe(KW) 80 100 150 150 200 200 200 200 200 200 200 200 200 200 200
Size(MM) Width 800 800 800 800 1000 1000 1000 1000 1000 1000 1200 1300 1300 1300 1300
Length 1250 1250 1250 1250 1620 1620 1620 1620 1620 1620 2200 2700 2700 2700 2700
Height 970 970 970 970 1525 1525 1525 1525 1525 1525 1916 2115 2115 2115 2115
Weight 680 680 680 750 800 960 960 1050 1050 1100 1320 1580 1580 1800 1800

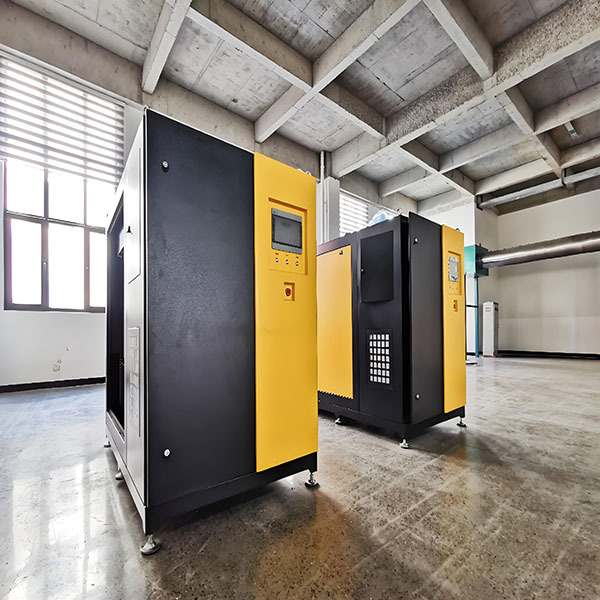

Product Show



High Air Flow Whole Air Suspension Blower For Power Industry 1

High Air Flow Whole Air Suspension Blower For Power Industry 2



Payment Methods



T/T,L/C,West Union,Alibaba Trade Insurance,AliPay



Transaction Process



  • Get requirements to match products
  • Compare with the Roots blower
  • Quotation
  • Receive payment
  • Production
  • Packing in wooden cases
  • Delivery
  • Feedback



FAQ



Q1: What factors will you need to match the products?

Pressure & Flow Volume

Q2: What is the production time?

Normally one week after receiving your payment.

Q3: What is your minimum order quantity?

MOQ 1 set.

Q4: Are you a manufacturer?

Yes.

Q5: Which delivery methods can you support?

By air, sea, land, rail, express like DHL, UPS, FEDEX.
